Adjustment [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [12/2013 - ]
- REMOVE NO. 2 SWITCH HOLE BASE
Refer to PROCEDURE - Step 31
- REMOVE FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 32
- ADJUST SHIFT LEVER POSITION
- Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
- Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.

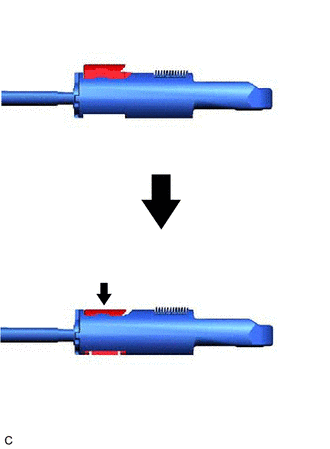

*a Counterclockwise - Slide the slider of the transmission control cable assembly in the direction indicated by the arrow in the illustration, and pull the lock piece outward.

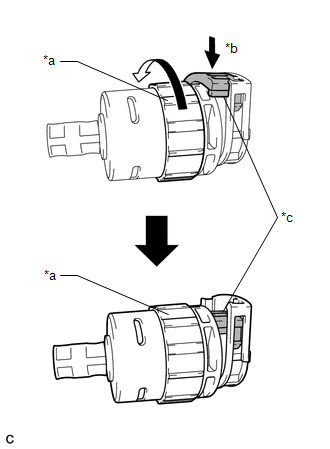

*a Slider *b Lock Piece *c Slide *d Pull - Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.
*a Lock Nut *b Push in *c Stopper - Install the outer part of the transmission control cable assembly to the transmission floor shift assembly.

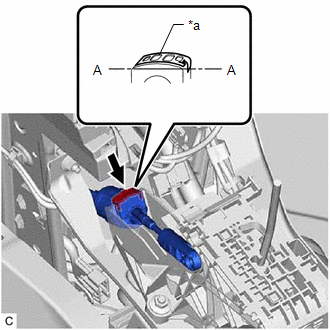

*a Stopper NOTE:After installation, check that the outer part of the cable lock is protruding beyond portion A-A as shown in the illustration.
- Install the end of the transmission control cable assembly to the transmission floor shift assembly.
*a Lock Piece *b Adjuster Case NOTE:- Check that the lock piece is pulled out.
- Install the cable end all the way to the base of the transmission floor shift assembly pin.
- Push the lock piece into the adjuster case.NOTE:
- Check that the park/neutral position switch assembly and shift lever are in neutral.
- Securely push in the lock piece until the slider lock is engaged.
- After adjusting the shift lever position, check the operation and function of the shift lever. If there is a problem, adjust the shift lever position again.
- Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
- INSTALL FRONT NO. 2 CONSOLE BOX INSERT
Refer to PROCEDURE - Step 19
- INSTALL NO. 2 SWITCH HOLE BASE
Refer to PROCEDURE - Step 20
- INSTALL CONSOLE BOX ASSEMBLY
Refer to INSTALLATION [12/2013 - ]
