Removal [11/2016 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [11/2016 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR

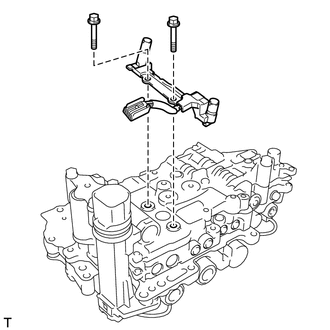

    1. GTY305278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disconnect the transmission revolution sensor connector.

    2. Remove the 2 bolts and transmission revolution sensor from the transmission valve body assembly.
