Installation [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different variant/trim than selected.

INSTALL TRANSMISSION REVOLUTION SENSOR
1. Temporarily install the transmission revolution sensor to the transmission valve body assembly with the 2 bolts.

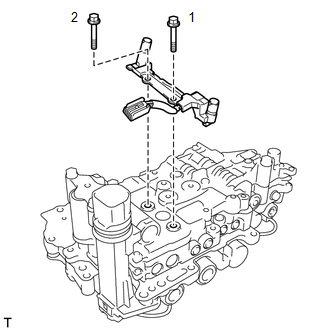

  Fig 1: Tightening Sequence Of Transmission Revolution Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not use a transmission revolution sensor that has been dropped.
2. Tighten the 2 bolts in the order shown in the illustration.
  Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)
3. Connect the transmission revolution sensor connector.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY
Refer to INSTALLATION [12/2013 - 08/2014] , or refer to INSTALLATION [08/2014 - 11/2016]
