Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER CAP
    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lever cap from the transmission floor shift assembly.
      GTY455670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the shift lever cap and transmission floor shift assembly.

  2. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [12/2013 - ]

  3. REMOVE SHIFTING HOLE BEZEL

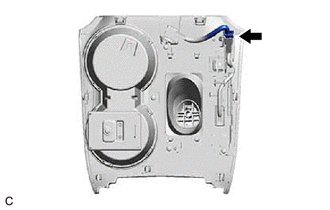

    1. Disconnect the shift position indicator connector.
      GTY448152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

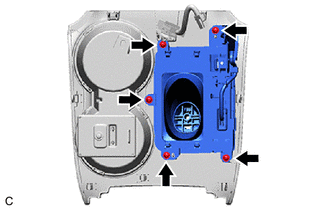

    2. Remove the 5 screws and shifting hole bezel from the upper console panel sub-assembly.
      GTY448153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT POSITION INDICATOR
    1. Disengage the claw and 2 guides and remove the shift position indicator from the shifting hole bezel.
      GTY448154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 31

  6. REMOVE FRONT NO. 2 CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 32

  7. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 33

  8. REMOVE NO. 2 CONSOLE BOX MOUNTING BRACKET

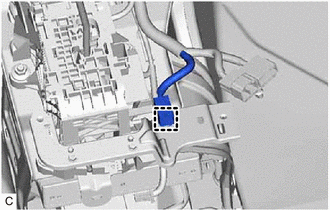

    1. Disengage the clamp from the No. 2 console box mounting bracket.
      GTY456073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

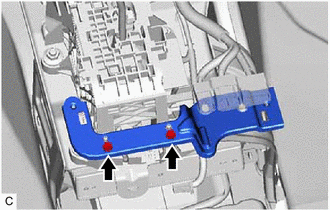

    2. Remove the 2 screws and No. 2 console box mounting bracket from the transmission floor shift assembly.
      GTY448165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Move the shift lever to N.

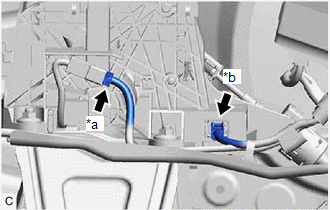

    2. Disconnect the transmission control switch connector.
      GTY445274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Transmission Control Switch Connector
      *b Shift Lock Control ECU Connector
    3. Disconnect the shift lock control ECU connector.
    4. Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
      GTY448162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.
      GTY436798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise
    6. Remove the 4 nuts and transmission floor shift assembly from the shift lever support.
      GTY448163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
