Installation [12/2013 - ]: Procedure

1. Temporarily install the transmission floor shift assembly to the shift lever support with the 4 nuts.
2. Install the 4 nuts in the order shown in the illustration.
   Fig 1: Tightening Sequence Of Transmission Floor Shift Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

3. Turn the lock nut of the transmission control cable assembly counterclockwise. While holding the lock nut, push in the stopper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Lock Nut
   *b	Push in
   *c	Stopper

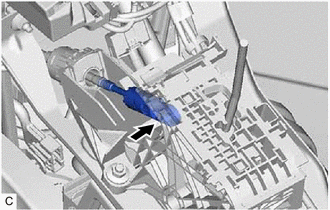

4. Install the outer part of the transmission control cable assembly to the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   NOTE:

   After installation, check that the outer part of the cable lock is protruding beyond portion A-A as shown in the illustration.

5. Confirm that the shift lever is in N, and then install the end of the transmission control cable assembly to the transmission floor shift assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • Securely install the end of the transmission control cable assembly to the transmission floor shift assembly.
   • Install the end of the transmission control cable assembly so that its adjustment lock section is on the driver side.

1. Install the No. 2 console box mounting bracket to the transmission floor shift assembly with the 2 screws.
2. Connect the clamp to the No. 2 console box mounting bracket.

Refer to PROCEDURE - Step 18

Refer to PROCEDURE - Step 19

Refer to PROCEDURE - Step 20

1. Engage the claw and 2 guides to install the shift position indicator to the shifting hole bezel.

1. Install the shifting hole bezel to the upper console panel sub-assembly with the 5 screws.
2. Connect the shift position indicator connector.

Refer to INSTALLATION [12/2013 - ]

1. Engage the 2 claws to install the shift lever cap to the transmission floor shift assembly.

See step  1
