Components [11/2016 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

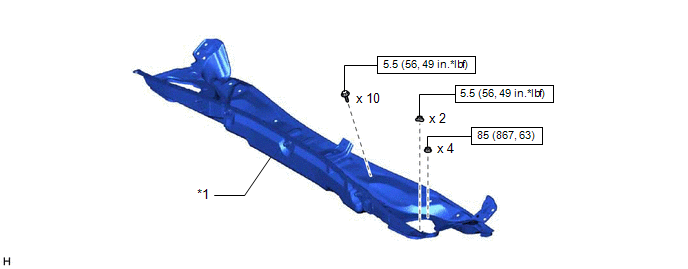

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (1 Of 6)
GTY721055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

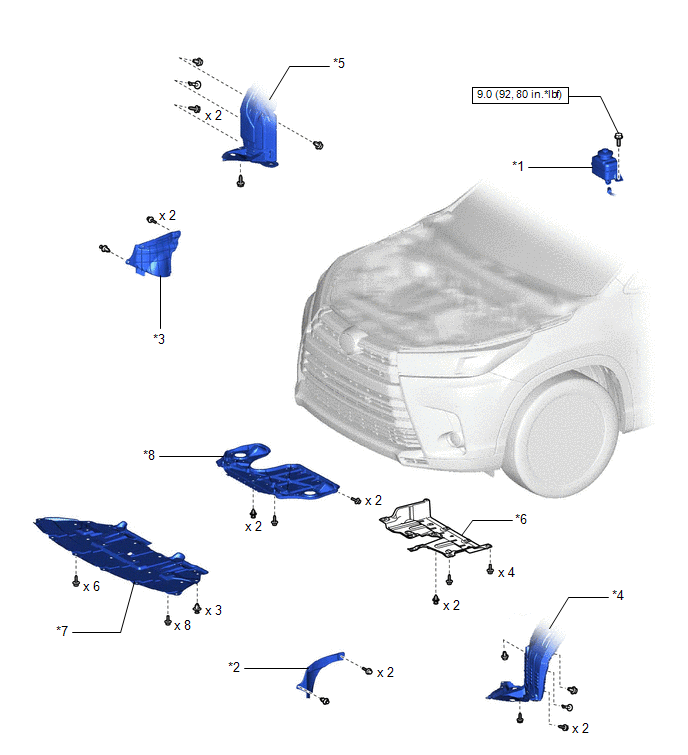

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (2 Of 6)
GTY735181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY *2 FRONT FENDER APRON SEAL LH
*3 FRONT FENDER APRON SEAL RH *4 FRONT FENDER LINER LH
*5 FRONT FENDER LINER RH *6 FRONT FLOOR COVER LH
*7 NO. 1 ENGINE UNDER COVER *8 NO. 2 ENGINE UNDER COVER
N*m (kgf*cm, ft.*lbf): Specified torque - -

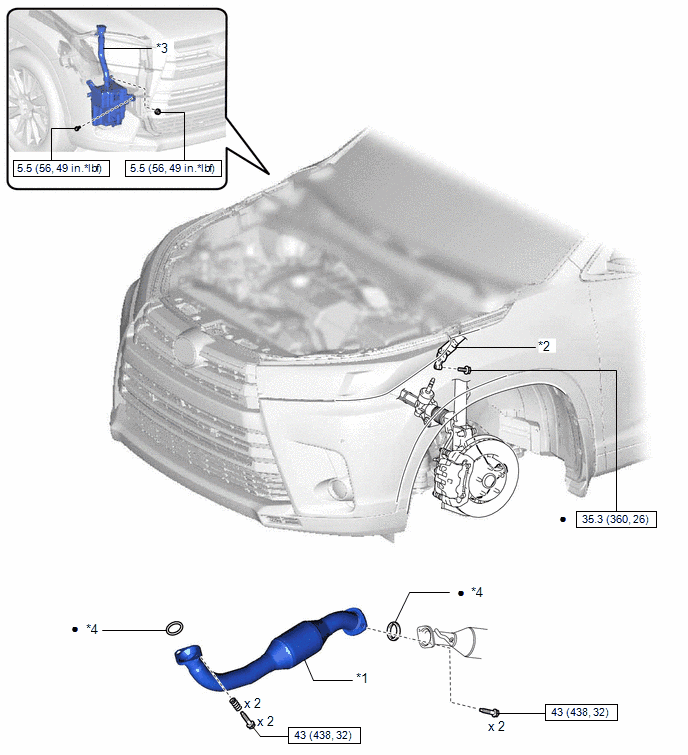

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (3 Of 6)
GTY701632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE ASSEMBLY (TWC: Front Catalyst) *2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3 WINDSHIELD WASHER JAR ASSEMBLY *4 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

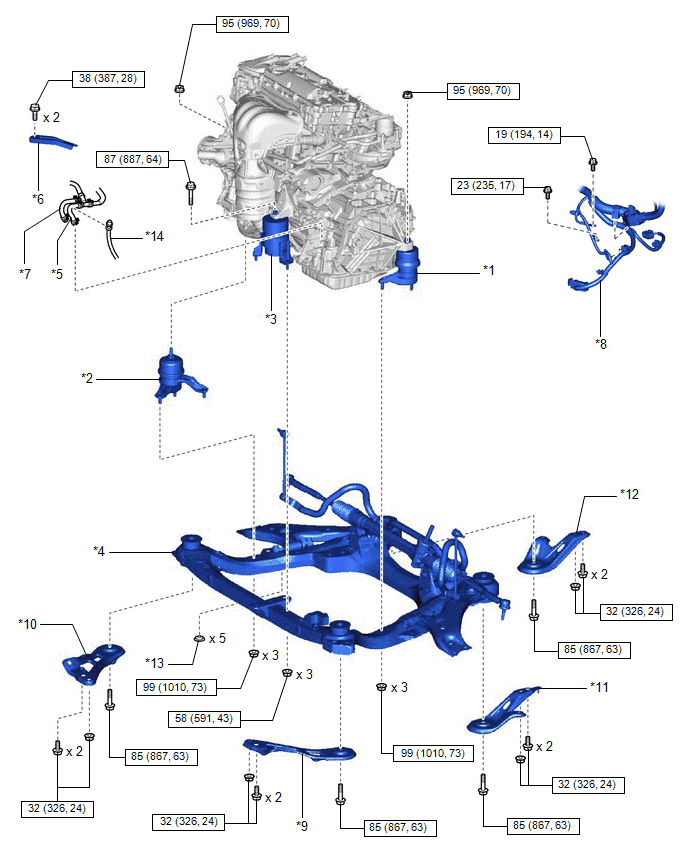

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (4 Of 6)
GTY729049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE MOUNTING INSULATOR LH *2 ENGINE MOUNTING INSULATOR RH
*3 FRONT ENGINE MOUNTING INSULATOR ASSEMBLY *4 FRONT FRAME ASSEMBLY
*5 NO. 3 WATER BY-PASS HOSE *6 NO. 2 ENGINE MOUNTING STAY RH
*7 NO. 4 WATER BY-PASS HOSE *8 WIRE HARNESS
*9 FRAME SIDE RAIL PLATE LH *10 FRAME SIDE RAIL PLATE RH
*11 FRONT SUSPENSION MEMBER REAR BRACE LH *12 FRONT SUSPENSION MEMBER REAR BRACE RH
*13 HOLE PLUG *14 BREATHER PLUG HOSE
N*m (kgf*cm, ft.*lbf): Specified torque - -

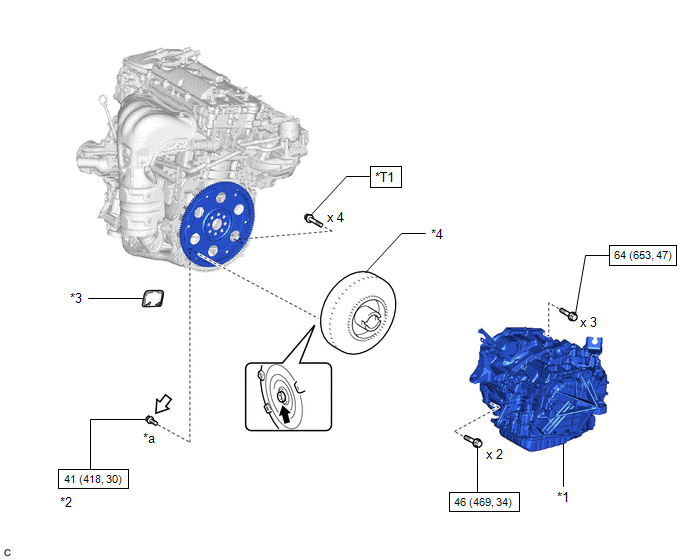

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (5 Of 6)
GTY739386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 FLYWHEEL HOUSING UNDER COVER *4 TORQUE CONVERTER ASSEMBLY
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
N*m (kgf*cm, ft.*lbf): Specified torque Clutch spline grease
Adhesive 1324 * Precoated part
*T1 Bolt Length 32 mm (1.26 in.): 44 (449, 32)
Bolt Length 33 mm (1.30 in.): 43 (438, 32)		 - -


Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications (6 Of 6)
GTY707492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AUTOMATIC TRANSAXLE ASSEMBLY *2 BREATHER PLUG HOSE
*3 FRONT ENGINE MOUNTING BRACKET *4 NO. 1 TRANSMISSION CONTROL CABLE BRACKET
*5 TRANSMISSION CASE PLUG ASSEMBLY *6 WIRE HARNESS CLAMP BRACKET
*7 WIRING HARNESS CONNECTOR *8 INLET NO. 1 OIL COOLER HOSE
*9 OUTLET NO. 1 OIL COOLER HOSE *10 TRANSMISSION OIL COOLER
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
ATF WS - -
