On-Vehicle Inspection [11/2016 - ]: Procedure
- CHECK RADIATOR CAP SUB-ASSEMBLY
- Measure the valve opening pressure.
*a Rubber Packing (1) *b Rubber Packing (2) *c Rubber Packing (3) *d Valve Seat - If there are water stains or foreign matter on the rubber packings (1), (2) or (3), clean the part(s) with water and finger scouring.
- Check that the rubber packings (1), (2) and (3) are not deformed, cracked or swollen.
- Check that the rubber packing (3) and valve seat are not stuck together.
- Apply engine coolant to the rubber packings (2) and (3) before using a radiator cap tester.
- When using the radiator cap tester, tilt it upward 30° or more.
*1 Radiator Cap Sub-assembly *a Radiator Cap Tester *b 30° or more - Pump the radiator cap tester several times, and check the maximum pressure.
Pumping Speed
1 pump per second
HINT:
Even if the radiator cap sub-assembly cannot maintain the maximum pressure, it is not a defect.
Result
Item Specified Condition Standard value
(for brand-new radiator cap sub-assembly)93 to 123 kPa (0.9 to 1.3 kgf/cm2 , 13.5 to 18.0 psi) Minimum standard value
(for used radiator cap sub-assembly)79 kPa (0.8 kgf/cm2 , 11.5 psi) If the maximum pressure is less than the minimum pressure, replace the radiator cap sub-assembly.
- Measure the valve opening pressure.
- CHECK RADIATOR ASSEMBLY FOR CLOGGING WARNING:
To prevent burns, do not touch the engine or other high temperature components while the engine is hot.
- Remove the radiator side deflector seal LH.
Refer to PROCEDURE - Step 1
- Remove the radiator side seal RH.
Refer to PROCEDURE - Step 2
- Remove the cool air intake duct seal.
Refer to PROCEDURE - Step 3
- Remove the inlet air cleaner assembly.
Refer to PROCEDURE - Step 25
- Shine a flashlight at the radiator assembly and cooler condenser assembly from the front of the cooler condenser assembly and check the radiator assembly for clogging using a mirror.

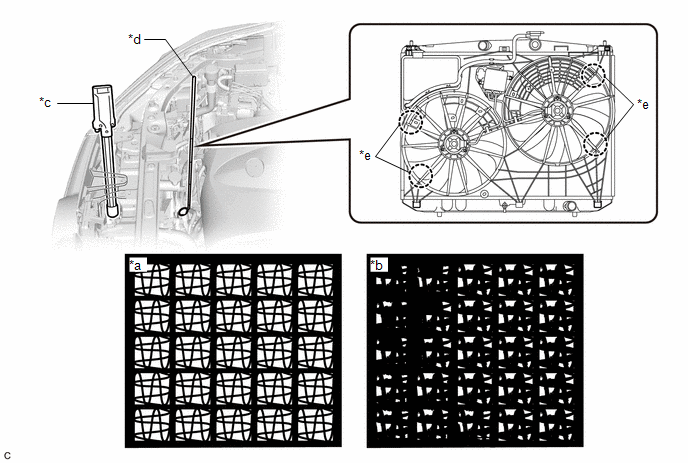

*a OK *b NG *c Flashlight *d Mirror *e Areas to be checked - - OK
The radiator assembly is not clogged.
If the radiator assembly is clogged, clean it.
- Install the inlet air cleaner assembly.
Refer to PROCEDURE - Step 52
- Install the cool air intake duct seal.
Refer to PROCEDURE - Step 4
- Install the radiator side seal RH.
Refer to PROCEDURE - Step 5
- Install the radiator side deflector seal LH.
Refer to PROCEDURE - Step 6
- Remove the radiator side deflector seal LH.
- CLEAN RADIATOR ASSEMBLY WARNING:
To prevent burns, do not touch the engine or other high temperature components while the engine is hot.
- Remove the radiator side deflector seal LH.
Refer to PROCEDURE - Step 1
- Remove the radiator side seal RH.
Refer to PROCEDURE - Step 2
- Remove the cool air intake duct seal.
Refer to PROCEDURE - Step 3
- Remove the inlet air cleaner assembly.
Refer to PROCEDURE - Step 25
- Cover the opening of each air duct with a piece of cloth.
- Clean the cooler condenser assembly.
- Check that the washer nozzle is not clogged.

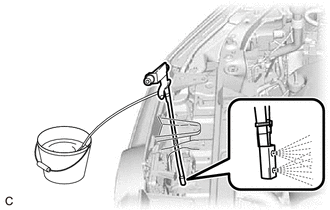

- Insert the washer nozzle into the space in front of the cooler condenser assembly and spray it.NOTE:
- Clean the fins of the cooler condenser assembly by spraying the entire area for 150 seconds. Repeat this process twice.
- Set the air pressure to 0.4 MPa (4.1 kgf/cm2 , 58 psi).
- Check that water sprays in mist form from the nozzle.
- Keep the nozzle parallel to the cooler condenser assembly.
- Do not allow the nozzle to contact the fins of the cooler condenser assembly.
- Keep the nozzle moving while spraying water.
- Do not spray the cooler compressor assembly or generator assembly excessively.
- Leave the cooler condenser assembly as is for 10 minutes to let the water penetrate the dirt.
- Clean the cooler condenser assembly again.NOTE:
- Clean the fins of the cooler condenser assembly by spraying the entire area for 150 seconds. Repeat this process twice.
- Set the air pressure to 0.4 MPa (4.1 kgf/cm2 , 58 psi).
- Check that water sprays in mist form from the nozzle.
- Keep the nozzle parallel to the cooler condenser assembly.
- Do not allow the nozzle to contact the fins of the cooler condenser assembly.
- Keep the nozzle moving while spraying water.
- Do not spray the cooler compressor assembly or generator assembly excessively.
- Using an air blow gun, dry the cooler condenser assembly for 3 minutes.
- Disconnect the cooling fan ECU connector.
- Disengage the 4 wire harness clamps.

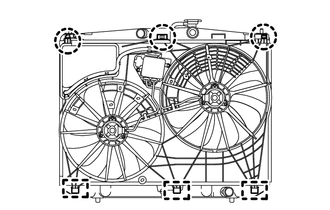

- Disengage the 3 claws and separate the fan shroud assembly from the radiator assembly.
- Clean the radiator assembly.

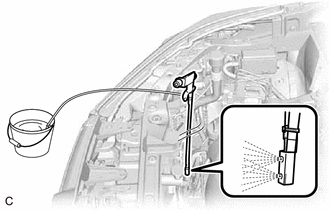

- Insert the washer nozzle between the radiator assembly and fan shroud and spray the radiator assembly.NOTE:
- Clean the fins of the radiator assembly by spraying the entire area for 150 seconds. Repeat this process twice.
- Set the air pressure to 0.4 MPa (4.1 kgf/cm2 , 58 psi).
- Check that water sprays in mist form from the nozzle.
- Keep the nozzle parallel to the radiator assembly.
- Do not allow the nozzle to contact the fins of the radiator assembly.
- Keep the nozzle moving while spraying water.
- Leave the radiator assembly as is for 10 minutes to let the water penetrate the dirt.
- Clean the radiator assembly again.NOTE:
- Clean the fins of the radiator assembly by spraying the entire area for 150 seconds. Repeat this process twice.
- Set the air pressure to 0.4 MPa (4.1 kgf/cm2 , 58 psi).
- Check that water sprays in mist form from the nozzle.
- Keep the nozzle parallel to the radiator assembly.
- Do not allow the nozzle to contact the fins of the radiator assembly.
- Keep the nozzle moving while spraying water.
- Using an air blow gun, dry the radiator assembly for 3 minutes.
- Insert the washer nozzle between the radiator assembly and fan shroud and spray the radiator assembly.
- Check the fins of the radiator assembly for clogs again.
If the radiator assembly is clogged, clean the cooler condenser assembly and radiator assembly again.
- Check that the 3 guides at the bottom are engaged to the radiator assembly.
- Engage the 3 claws to install the fan shroud assembly to the radiator assembly.
- Engage the 4 wire harness clamps.
- Connect the cooling fan ECU connector.
- Remove the piece of cloth from the opening of each air duct.
- Install the inlet air cleaner assembly.
Refer to PROCEDURE - Step 52
- Install the cool air intake duct seal.
Refer to PROCEDURE - Step 4
- Install the radiator side seal RH.
Refer to PROCEDURE - Step 5
- Install the radiator side deflector seal LH.
Refer to PROCEDURE - Step 6
