Components [11/2015 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

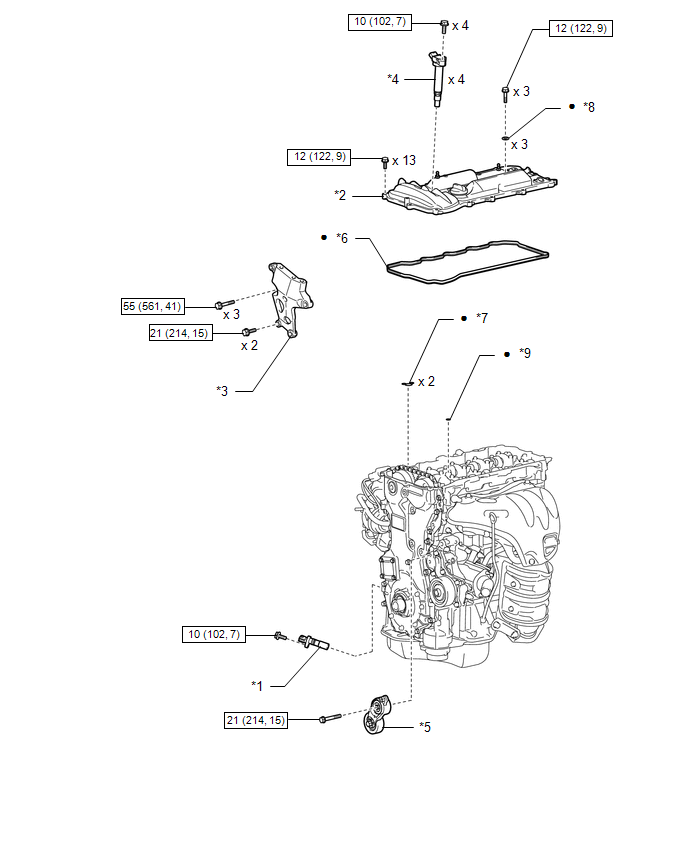

Fig 1: Oil Pump Replacement Components With Torque Specifications (3 Of 4)
GTY560378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 CYLINDER HEAD COVER SUB-ASSEMBLY
*3 ENGINE MOUNTING BRACKET RH *4 IGNITION COIL ASSEMBLY
*5 V-RIBBED BELT TENSIONER ASSEMBLY *6 CYLINDER HEAD COVER GASKET
*7 CAMSHAFT BEARING CAP OIL HOLE GASKET *8 SEAL WASHER
*9 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1344 * Precoated part


Fig 1: Oil Pump Replacement Components With Torque Specifications (4 Of 4)
GTY437104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT PULLEY *2 TIMING CHAIN COVER OIL SEAL
*3 TIMING CHAIN COVER SUB-ASSEMBLY *4 OIL HOLE COVER GASKET
*5 OIL PUMP GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease - -
