Installation [12/2013 - ]: Procedure

HINT:

Perform "Inspection After Repair" after replacing the knock control sensor.

Refer to INITIALIZATION [12/2013 - ]

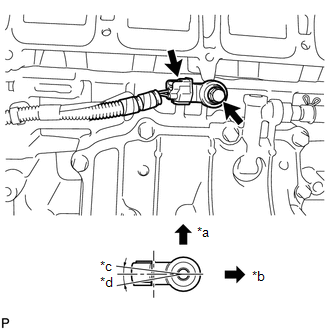

1. Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Top
   *b	Front of Engine
   *c	7°
   *d	10°

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   NOTE:

   • If the knock control sensor has been struck or dropped, replace it.
   • Make sure that the knock control sensor is in the correct position.
2. Connect the knock control sensor connector.

Refer to INSTALLATION [12/2013 - ]

1. Perform "Inspection After Repair" after replacing the knock control sensor.

   Refer to INITIALIZATION [12/2013 - ]
