Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

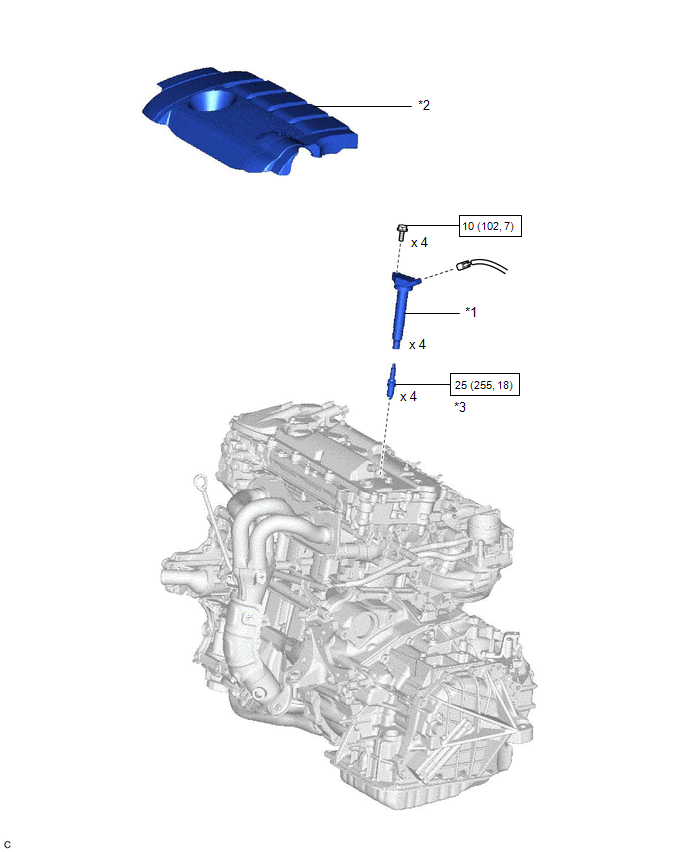

Fig 1: Ignition Coil And Spark Plug Replacement Components With Torque Specifications
GTY445007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 IGNITION COIL ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 SPARK PLUG - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
