Removal [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 4
- REMOVE HEATED OXYGEN SENSOR

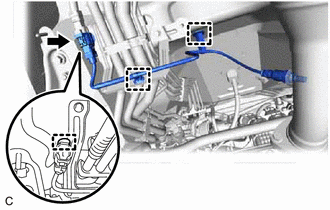

- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 3 wire harness clamps.

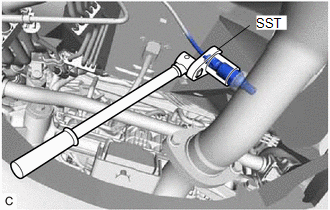

- Using SST, remove the heated oxygen sensor from the center exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
