Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

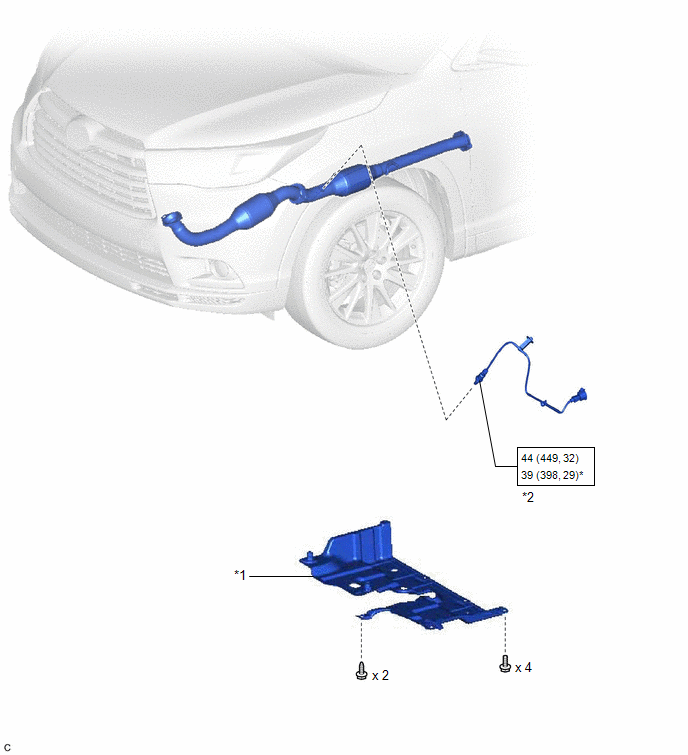

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY425093Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT FLOOR COVER LH *2 HEATED OXYGEN SENSOR
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
