Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

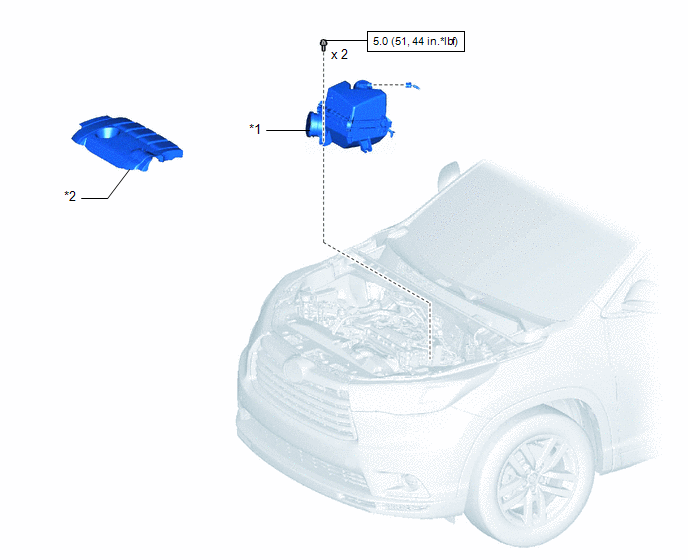

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY441906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER ASSEMBLY *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
N*m (kgf*cm, ft.*lbf): Specified torque - -

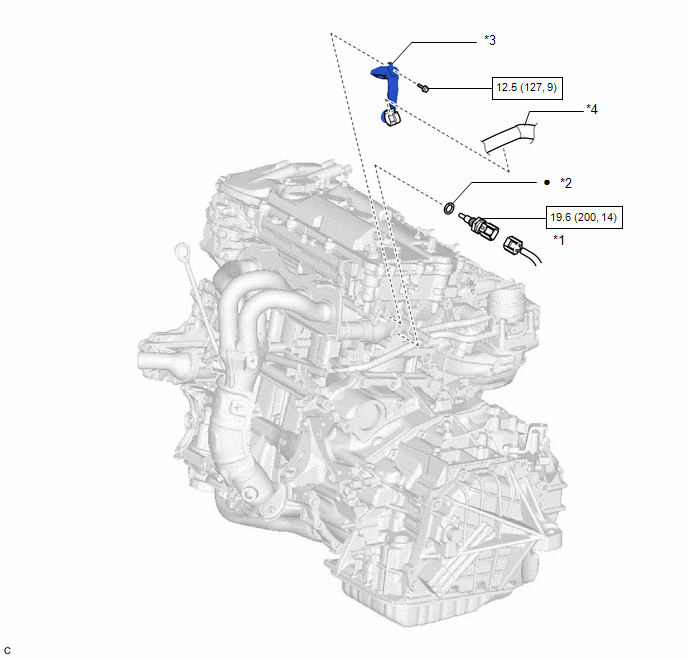

Fig 1: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY436592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 GASKET
*3 HEATER BRACKET *4 HEATER HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
