Section 16 (Engine Control System (1AR-FE) (Service Information) (Except Hybrid))
>>
ECM
>>
Components [11/2016 - ]
>>
Illustration
Components [11/2016 - ]: Illustration
WARNING:
This page is about a different variant/trim than selected.

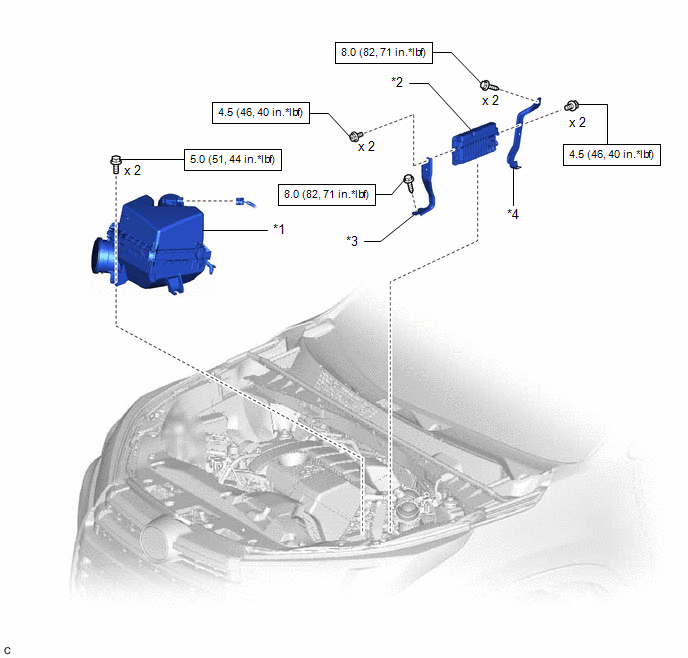

Fig 1: ECM Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
AIR CLEANER ASSEMBLY
*2
ECM
*3
ECM BRACKET
*4
NO. 2 ECM BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque
-
-
