Components [12/2013 - 11/2015]: Illustration

WARNING: This page is about a different variant/trim than selected.

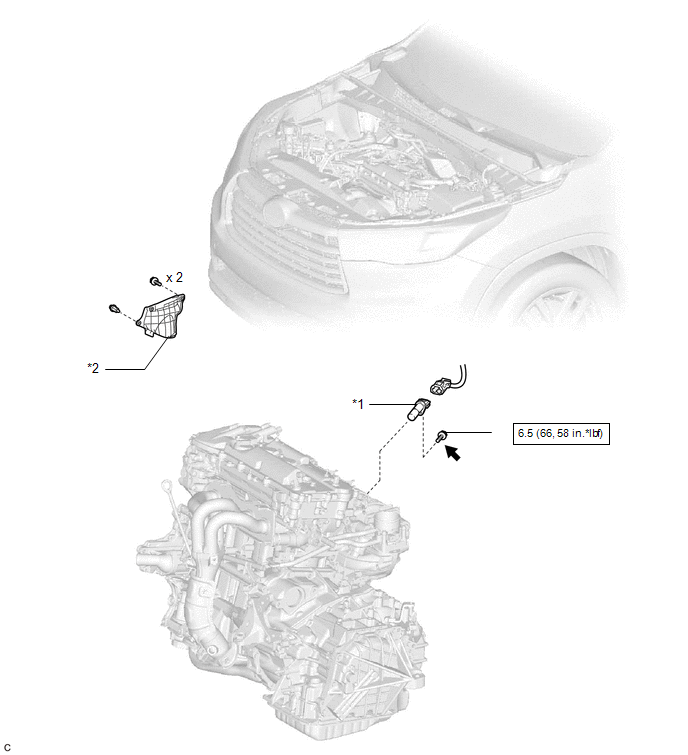

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY443799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRANKSHAFT POSITION SENSOR *2 FRONT FENDER APRON SEAL RH
N*m (kgf*cm, ft.*lbf): Specified torque Adhesive 1324
* Precoated part - -
