Components [11/2015 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

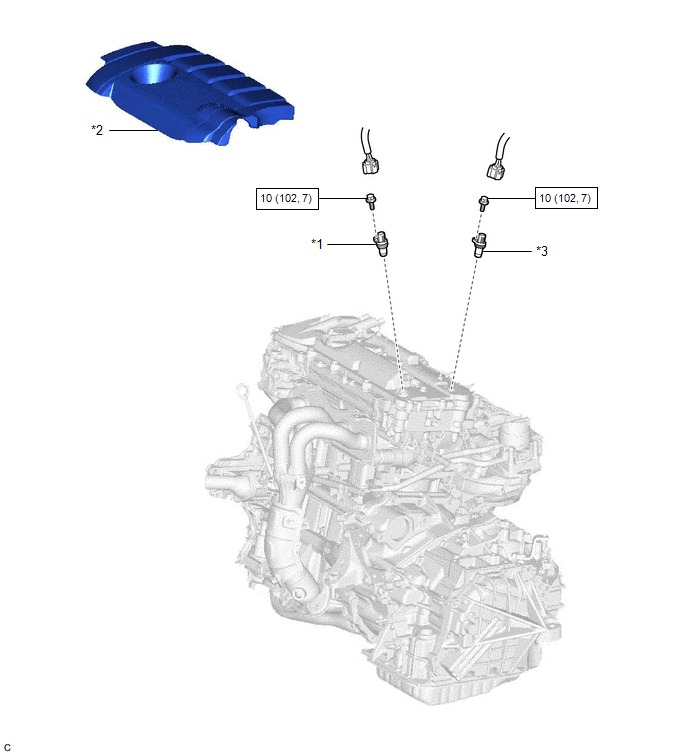

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications
GTY544710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR (for Exhaust Side) *2 NO. 1 ENGINE COVER SUB-ASSEMBLY
*3 CAMSHAFT POSITION SENSOR (for Intake Side) - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
