Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE AIR FUEL RATIO SENSOR
    1. Disengage the hose clamp and separate the air fuel ratio sensor wire from the No. 1 radiator hose.

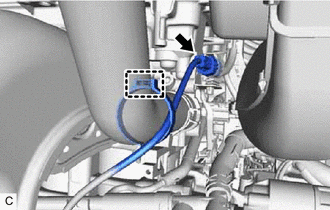

      GTY453445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor connector.
    3. Disconnect the 2 wire harness clamps from the wire harness clamp bracket.

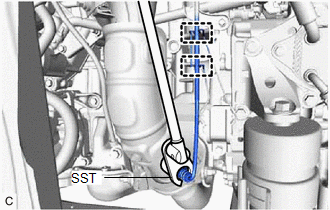

      GTY444228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using SST, remove the air fuel ratio sensor from the exhaust manifold.
      • SST: 09224-00010
      NOTE:

      If the air fuel ratio sensor has been struck or dropped, replace it.
