Components [12/2013 - ]: Illustration

WARNING: This page is about a different variant/trim than selected.

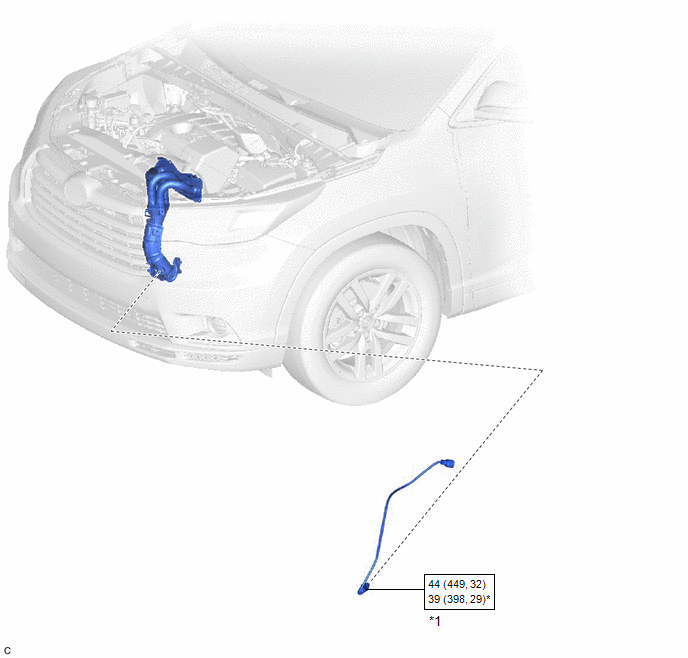

Fig 1: Air Fuel Ratio Sensor Replacement Components With Torque Specifications
GTY453686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR FUEL RATIO SENSOR - -
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
