Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ACCELERATOR PEDAL SENSOR ASSEMBLY
    NOTE:
    • Avoid physical shock to the accelerator pedal sensor assembly.
    • Do not disassemble the accelerator pedal sensor assembly.
    • The accelerator pedal sensor assembly does not require lubrication.
    • Do not apply oil or other lubricants to the accelerator pedal sensor assembly. If applied, the accelerator pedal sensor assembly must be replaced.
    1. Disconnect the accelerator pedal sensor assembly connector.

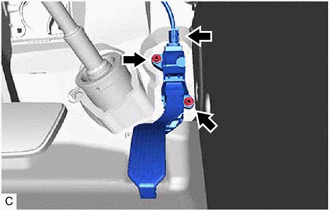

      GTY437743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 nuts and accelerator pedal sensor assembly.
      NOTE:

      If the accelerator pedal sensor assembly has been struck or dropped, replace it.
