Reassembly [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL PLANETARY GEAR
    1. Apply high-temperature grease to the planetary gears and planetary shaft pins.
      GTY443526Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    2. Install the 3 planetary gears.
  2. INSTALL STARTER ARMATURE ASSEMBLY
    1. Apply high-temperature grease to the starter armature shaft.
      GTY442069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    2. Apply high-temperature grease to the washer and bearing shown in the illustration.
      GTY430882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    3. Install the starter armature assembly to the starter commutator end frame assembly.
    4. Using snap ring pliers, install the washer and a new snap ring.
      NOTE:
      • Be sure to install the snap ring in the armature shaft groove securely.
      • Be sure to properly install the snap ring because it expands easily.
      GTY427310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Using a vernier caliper, measure the width of the snap ring end gap as shown in the illustration.
      GTY436451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Width

      Maximum Width

      5.0 mm (0.197 in.)

      If the width is greater than the maximum, replace the snap ring with a new one.

  3. INSTALL STARTER COMMUTATOR END FRAME COVER
    1. Install the starter commutator end frame cover to the starter commutator end frame assembly.
      GTY191557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL STARTER ARMATURE PLATE
    1. Insert the starter armature plate to the starter yoke assembly.
      GTY446921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Keyway
      *b Key
    2. Align the keyway of the starter armature plate with the key inside the starter yoke assembly, and install the starter armature plate.
  5. INSTALL STARTER COMMUTATOR END FRAME ASSEMBLY

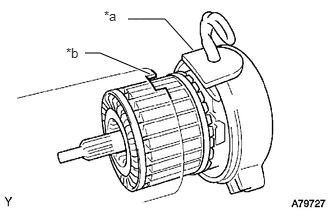

    GTY447035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Rubber
    *b Cutout
    1. Align the rubber of the starter commutator end frame assembly with the cutout of the starter yoke assembly.
    2. Install the starter commutator end frame assembly to the starter yoke assembly.
      NOTE:

      The magnet of the starter yoke assembly may attract the starter armature assembly when the starter commutator end frame assembly is installed, causing the magnet to break.

  6. INSTALL STARTER YOKE ASSEMBLY
    1. Align the protrusion of the starter yoke assembly with the cutout of the repair service starter kit.
      GTY449129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion
      *b Cutout
    2. Install the starter yoke assembly with the 2 through bolts.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  7. INSTALL REPAIR SERVICE STARTER KIT
    1. Apply high-temperature grease to the plunger.
      GTY452974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hook
      High-temperature Grease
    2. Hang the hook of the plunger on the drive lever.
    3. Apply high-temperature grease to the return spring.
      GTY431398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      High-temperature Grease
    4. Install the magnet switch with the 2 screws.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    5. Connect the field coil lead wire to the magnet switch with the nut.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
