Disassembly [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE REPAIR SERVICE STARTER KIT
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the nut and disconnect the field coil lead wire from the magnet switch.
- Holding the magnet switch to the repair service starter kit, remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the magnet switch.
- Remove the return spring and plunger from the repair service starter kit.
- REMOVE STARTER YOKE ASSEMBLY
- Remove the 2 through bolts and pull out the starter yoke assembly together with the starter commutator end frame assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Starter Yoke Assembly |
| *2 |
Starter Commutator End Frame Assembly |
- REMOVE STARTER COMMUTATOR END FRAME ASSEMBLY
- Remove the starter commutator end frame assembly from the starter yoke assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Starter Yoke Assembly |
| *2 |
Starter Commutator End Frame Assembly |
- REMOVE STARTER ARMATURE PLATE
- Remove the starter armature plate from the starter yoke assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *1 |
Starter Yoke Assembly |
| *2 |
Starter Armature Plate |
- REMOVE STARTER COMMUTATOR END FRAME COVER
- Using a screwdriver, pry out the starter commutator end frame cover from the starter commutator end frame assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE STARTER ARMATURE ASSEMBLY
- Hold the starter commutator end frame assembly in a vise between aluminum plates.
NOTE:
Do not overtighten the vise.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

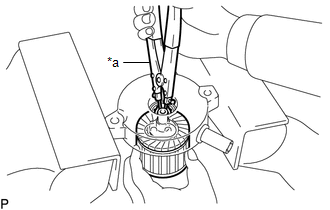

- Using snap ring pliers, remove the snap ring and washer.
NOTE:
Do not drop the starter armature assembly.
- Remove the starter armature assembly from the starter commutator end frame assembly.
- REMOVE PLANETARY GEAR
- Remove the 3 planetary gears from the repair service starter kit.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
