Components [11/2016 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

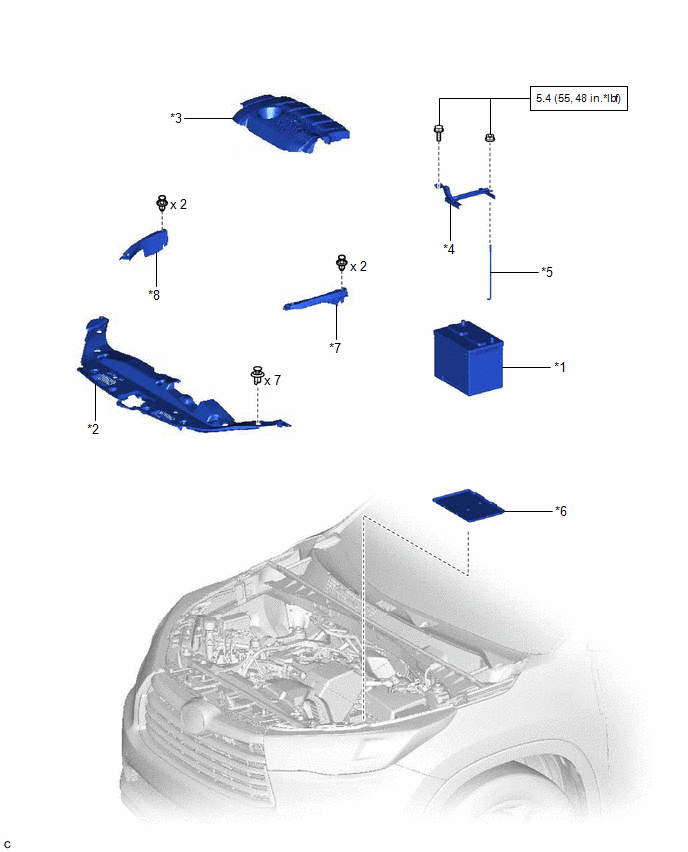

| Callout | Description | Callout | Description |
| *1 | BATTERY | *2 | COOL AIR INTAKE DUCT SEAL |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | BATTERY CLAMP |
| *5 | BATTERY CLAMP BOLT | *6 | BATTERY TRAY |
| *7 | RADIATOR SIDE DEFLECTOR SEAL LH | *8 | RADIATOR SIDE SEAL RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
| *A | Type A | *B | Type B |
| *1 | AIR CLEANER CAP WITH AIR CLEANER HOSE | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | INLET AIR CLEANER ASSEMBLY |
| *5 | STARTER ASSEMBLY | *6 | TERMINAL CAP |
| *7 | STUD BOLT | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
| *1 | PLANETARY GEAR | *2 | REPAIR SERVICE STARTER KIT |
| *3 | STARTER ARMATURE ASSEMBLY | *4 | STARTER ARMATURE PLATE |
| *5 | STARTER COMMUTATOR END FRAME COVER | *6 | STARTER YOKE ASSEMBLY |
| *7 | STARTER COMMUTATOR END FRAME ASSEMBLY | *8 | REPAIR SERVICE STARTER KIT |
| *9 | MAGNET SWITCH | *10 | PLUNGER |
| *11 | RETURN SPRING | *12 | WASHER |
| *13 | SNAP RING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| High-temperature Grease | - | - |
