Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different variant/trim than selected.

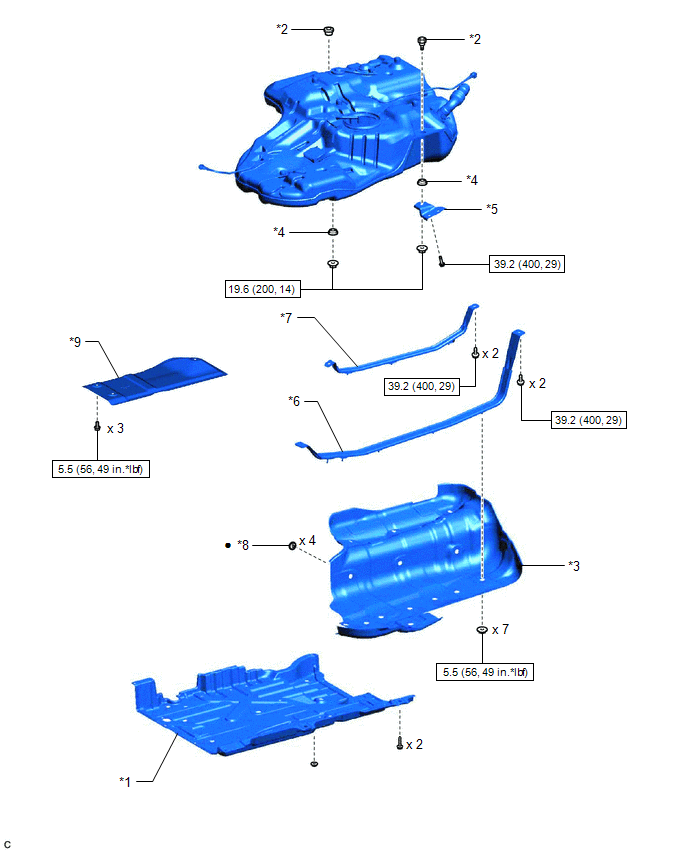

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	FRONT CENTER FLOOR COVER	*2	FUEL TANK CUSHION SET
*3	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY	*4	NO. 5 FUEL TANK CUSHION
*5	REAR FUEL TANK BRACKET LH	*6	NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH
*7	NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH	*8	CLIP
*9	CHARCOAL CANISTER PROTECTOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

Fig 1: Fuel Tank Replacement Components (2 Of 2)

*1	FUEL TANK ASSEMBLY	*2	FUEL TANK BREATHER TUBE
*3	FUEL TANK MAIN TUBE SUB-ASSEMBLY	*4	FUEL TANK SIDE PLATE
*5	FUEL TANK TO FILLER PIPE HOSE	*6	FUEL TANK VENT HOSE SUB-ASSEMBLY
*7	TANK SUCTION TUBE SUPPORT	*8	FUEL TANK BAND PIN
*9	FUEL TANK CUSHION	-	-
•	Non-reusable part	-	-
