Components [12/2013 - ]: Illustration
WARNING: This page is about a different variant/trim than selected.

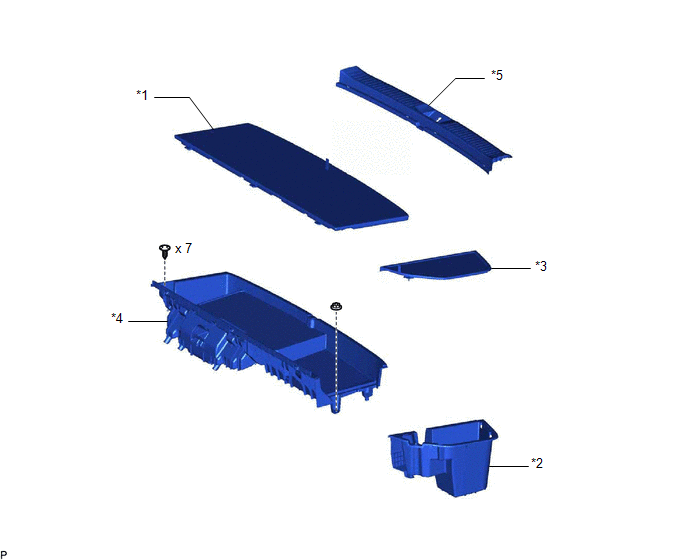

| *1 | DECK BOARD ASSEMBLY | *2 | DECK SIDE TRIM BOX LH |
| *3 | NO. 3 DECK BOARD SUB-ASSEMBLY | *4 | REAR DECK FLOOR BOX |
| *5 | REAR FLOOR FINISH PLATE | - | - |
| Callout | Description | Callout | Description |

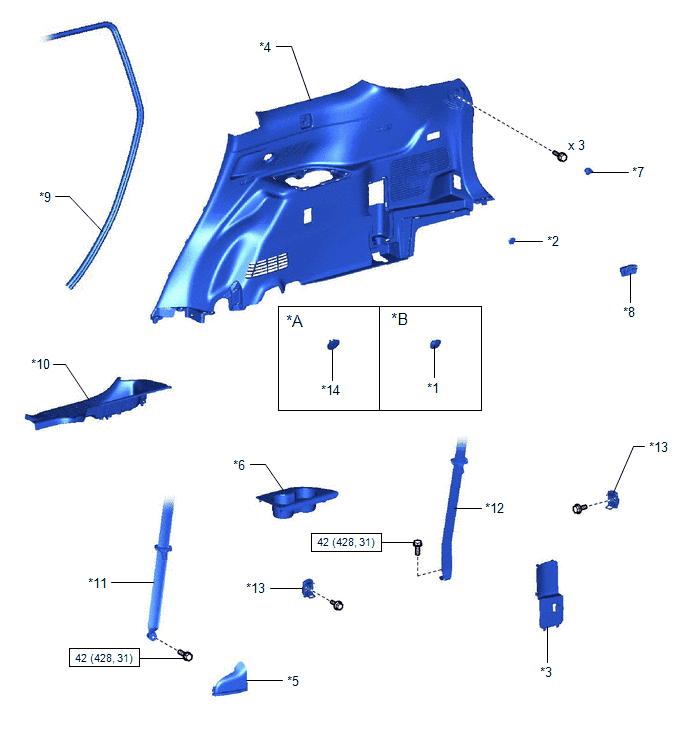

| *1 | DECK TRIM POCKET COVER | *2 | DECK TRIM SIDE PANEL ASSEMBLY LH |
| *3 | DECK TRIM SIDE SERVICE HOLE COVER | *4 | FRONT DECK SIDE TRIM COVER LH |
| *5 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *6 | NO. 2 DECK SIDE TRIM COVER |
| *7 | REAR DOOR OPENING TRIM WEATHERSTRIP LH | *8 | REAR DOOR SCUFF PLATE LH |
| *9 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH | *10 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH |
| *11 | ROPE HOOK | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| Callout | Description | Callout | Description |
| *A | w/o Rear Automatic Air Conditioning System | *B | w/ Rear Automatic Air Conditioning System |
| *1 | COOLER (ROOM TEMP. SENSOR) THERMISTOR | *2 | DECK TRIM POCKET COVER |
| *3 | DECK TRIM SIDE BELT HOLE COVER RH | *4 | DECK TRIM SIDE PANEL ASSEMBLY RH |
| *5 | FRONT DECK SIDE TRIM COVER RH | *6 | NO. 1 DECK SIDE TRIM COVER |
| *7 | NO. 1 LUGGAGE COMPARTMENT TRIM HOOK | *8 | NO. 1 ROOM LIGHT ASSEMBLY |
| *9 | REAR DOOR OPENING TRIM WEATHERSTRIP RH | *10 | REAR DOOR SCUFF PLATE RH |
| *11 | REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH | *12 | REAR NO. 2 SEAT OUTER BELT ASSEMBLY RH |
| *13 | ROPE HOOK | *14 | SIDE TRIM COVER RH |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

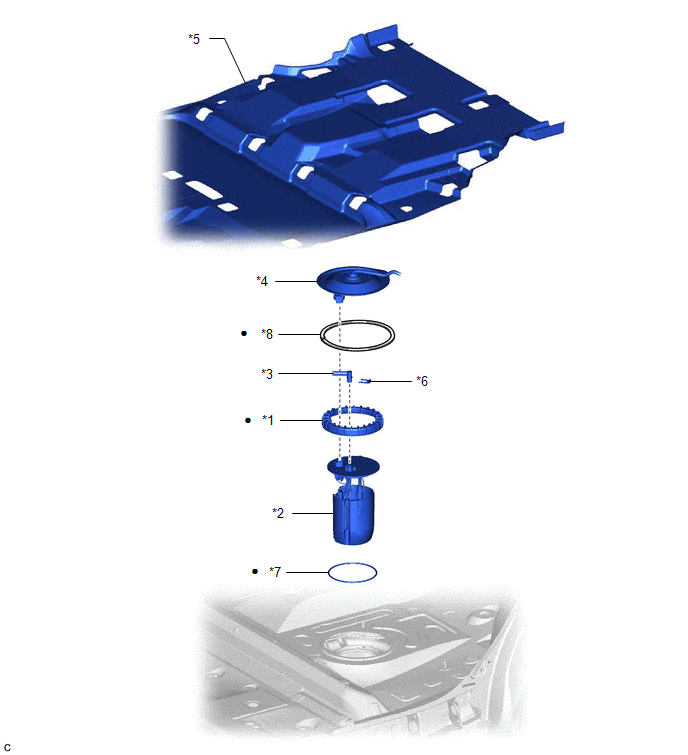

| *1 | FUEL PUMP GAUGE RETAINER | *2 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 | FUEL TANK MAIN TUBE SUB-ASSEMBLY | *4 | REAR FLOOR SERVICE HOLE COVER |
| *5 | FRONT FLOOR CARPET | *6 | TUBE JOINT CLIP |
| *7 | FUEL SUCTION TUBE SET GASKET | *8 | BUTYL TAPE |
| • | Non-reusable part | - | - |

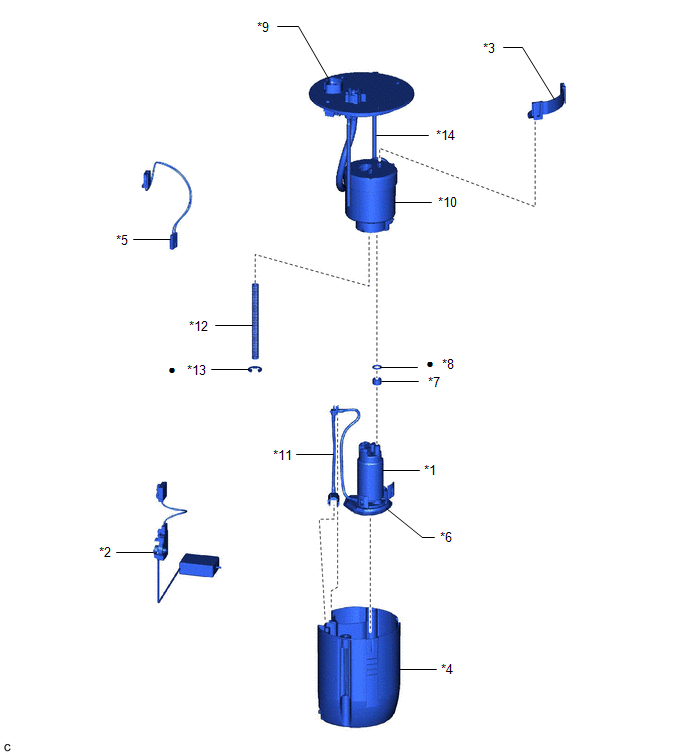

| *1 | FUEL PUMP | *2 | FUEL SENDER GAUGE ASSEMBLY |
| *3 | NO. 1 FUEL SUCTION SUPPORT | *4 | FUEL SUB-TANK |
| *5 | FUEL PUMP HARNESS | *6 | SUCTION FILTER |
| *7 | FUEL PUMP SPACER | *8 | O-RING |
| *9 | FUEL SUCTION PLATE SUB-ASSEMBLY | *10 | FUEL FILTER |
| *11 | FUEL PUMP FILTER HOSE | *12 | SPRING |
| *13 | E-RING | *14 | FUEL SUCTION PLATE SHAFT |
| • | Non-reusable part | - | - |
