Installation [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL INTAKE MANIFOLD
    1. Install the wire harness clamp bracket to the intake manifold with the bolt.

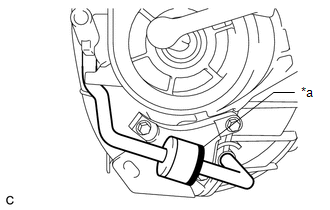

    2. Connect the 2 vacuum hoses and check that the No. 1 check valve is installed as shown in the illustration.
      GTY429098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Black
    3. Check the 4 tumble control valves (TCV).
      NOTE:

      The 4 tumble control valves (TCV) may be damaged if they are not closed before installing the intake manifold.

      HINT:

      Connect the battery to the terminals of the intake air control valve actuator to operate the motor and close the 4 tumble control valves (TCV).

      Refer to PROCEDURE - Step 3

    4. Install a new intake manifold gasket to the intake manifold.
    5. Temporarily install the intake manifold with the 6 bolts.

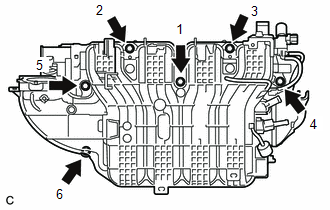

    6. Tighten the 6 bolts in the order shown in the illustration.
      Fig 1: Intake Manifold Tightening Sequence
      GTY438404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

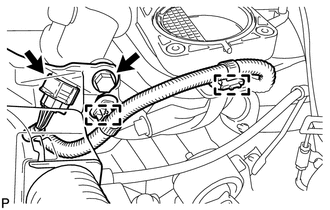

    7. Connect the intake air control valve actuator connector.
      GTY304861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

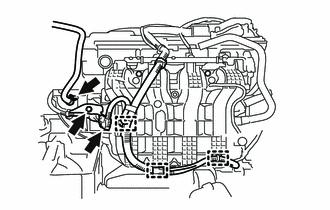

    8. Engage the 2 wire harness clamps.
    9. Connect the wire harness with the bolt.
    10. Install the wire harness clamp bracket to the intake manifold with the bolt.
      GTY444200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    11. Connect the sensor wire connector.
    12. Engage the 3 wire harness clamps.
    13. Connect the fuel vapor feed hose to the intake manifold.
    14. Install the 2 wire harness clamp brackets to the intake manifold with the 2 bolts.
  2. INSTALL FUEL DELIVERY PIPE

    Refer to PROCEDURE - Step 2

  3. CONNECT ENGINE WIRE

    Refer to PROCEDURE - Step 3

  4. CONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. CONNECT UNION TO VACUUM TUBE HOSE
    1. Connect the union to vacuum tube hose to the intake manifold and slide the clip to secure it.
  6. CONNECT NO. 2 VENTILATION HOSE
    1. Connect the No. 2 ventilation hose to the intake manifold and slide the clip to secure it.
  7. INSTALL VACUUM SWITCHING VALVE ASSEMBLY (for ACIS)
    1. Install the vacuum switching valve assembly (for ACIS) to the intake manifold with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    2. Connect the vacuum switching valve assembly (for ACIS) connector.
    3. Connect the 2 vacuum hoses.
    4. Engage the wire harness clamp.
    5. Connect the union to vacuum tube hose to the vacuum hose clamp.
  8. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]

  9. INSTALL THROTTLE BODY WITH MOTOR ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]

  10. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 10 , or refer to PROCEDURE - Step 10 , or refer to PROCEDURE - Step 10

  11. INSTALL BRAKE BOOSTER VACUUM EJECTOR

    Refer to INSTALLATION [12/2013 - ]

  12. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [12/2013 - ]

  13. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [12/2013 - 11/2016] , or refer to INITIALIZATION [11/2016 - ]

  14. INSPECT FOR FUEL LEAK

    Refer to PROCEDURE - Step 1
