Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.

REMOVE INTAKE MANIFOLD
Refer to REMOVAL [12/2013 - ]

REMOVE INTAKE AIR CONTROL VALVE ACTUATOR (for TCV)

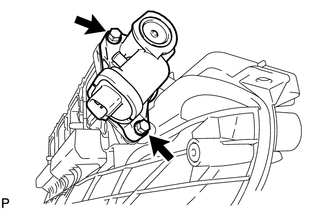

Remove the 2 bolts, intake air control valve actuator (for TCV) and gasket from the intake manifold.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

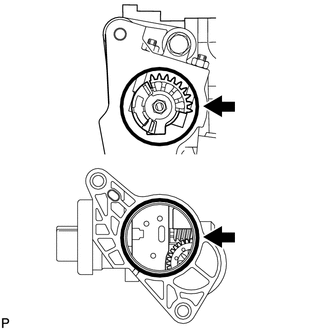

Make sure that foreign matter, such as water, oil, sand or iron particles, does not enter the gear chamber or intake air control valve actuator (for TCV) at the locations marked by the circles in the illustration.

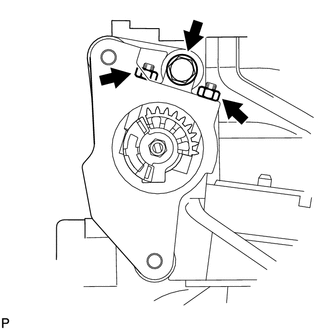

Do not loosen or remove the bolt and 2 nuts shown in the illustration.
