Inspection [12/2013 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT INTAKE AIR CONTROL VALVE ACTUATOR (for TCV)
- Check the intake air control valve actuator (for TCV) operation.

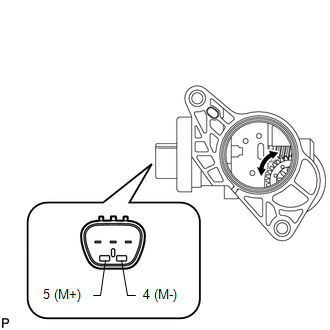

- Check that the motor operates when the battery is connected to the terminals of the intake air control valve actuator (for TCV).NOTE:
Apply battery voltage for 1 to 3 seconds.
If battery voltage is applied for more than 3 seconds, the intake air control valve actuator may be damaged.
If the positive (+) and negative (-) battery leads contact the sensor terminals, the intake air control valve actuator (for TCV) may be damaged.
Standard
Tester Connection Specified Condition Positive (+) battery voltage applied to terminal 4 (M-) and negative (-) battery voltage applied to terminal 5 (M+) Gear rotates clockwise Positive (+) battery voltage applied to terminal 5 (M+) and negative (-) battery voltage applied to terminal 4 (M-) Gear rotates counterclockwise If the result is not as specified, replace the intake air control valve actuator (for TCV).
- Check that the motor operates when the battery is connected to the terminals of the intake air control valve actuator (for TCV).
- Check the intake air control valve actuator (for TCV) operation.
