Components [12/2013 - 11/2015]: Illustration

WARNING: This page is about a different variant/trim than selected.

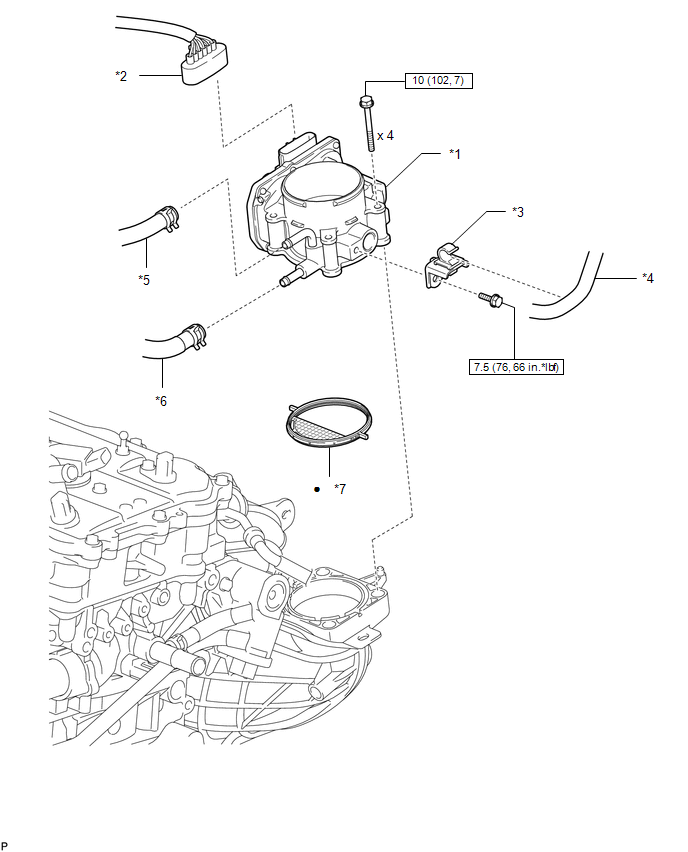

Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 10)
GTY446604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 THROTTLE BODY WITH MOTOR ASSEMBLY *2 THROTTLE POSITION SENSOR AND CONTROL MOTOR CONNECTOR
*3 FUEL TUBE BRACKET *4 FUEL TUBE
*5 NO. 1 WATER BY-PASS HOSE *6 NO. 2 WATER BY-PASS HOSE
*7 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

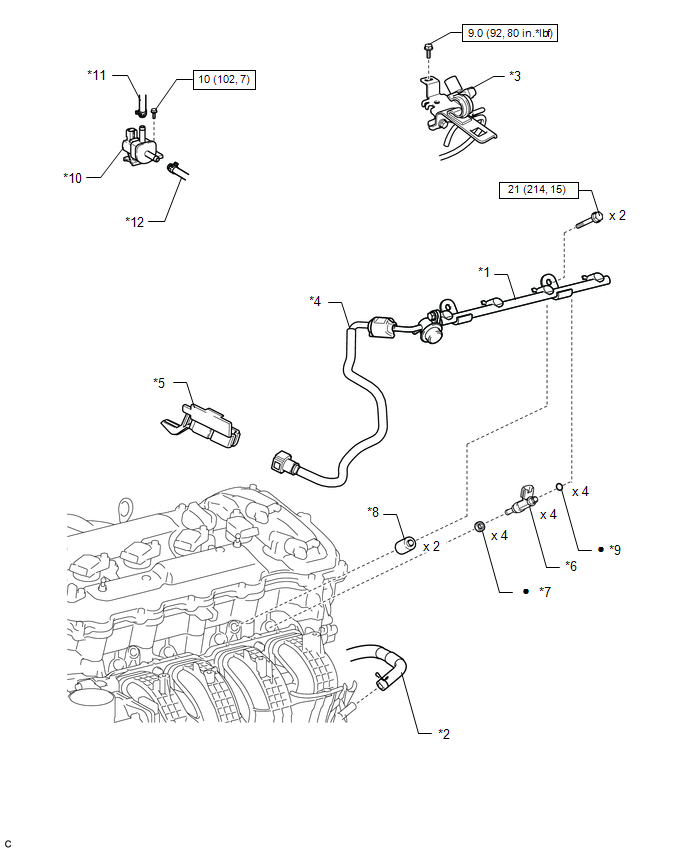

Fig 1: Engine Unit Replacement Components With Torque Specifications (2 Of 10)
GTY454625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL DELIVERY PIPE *2 NO. 2 VENTILATION HOSE
*3 VACUUM SWITCHING VALVE ASSEMBLY *4 FUEL TUBE SUB-ASSEMBLY
*5 NO. 1 FUEL PIPE CLAMP *6 FUEL INJECTOR ASSEMBLY
*7 INJECTOR VIBRATION INSULATOR *8 FUEL DELIVERY SPACER
*9 O-RING *10 NO. 1 VACUUM SWITCHING VALVE
*11 NO. 1 VACUUM HOSE *12 NO. 2 VACUUM HOSE
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

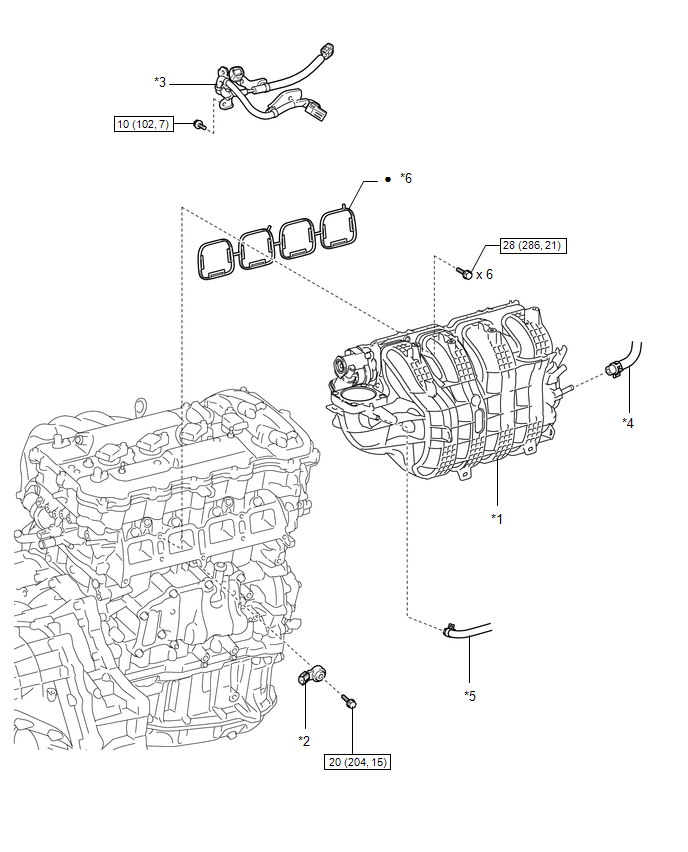

Fig 1: Engine Unit Replacement Components With Torque Specifications (3 Of 10)
GTY570947Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE MANIFOLD *2 KNOCK CONTROL SENSOR
*3 SENSOR WIRE *4 UNION TO VACUUM TUBE HOSE
*5 FUEL VAPOR FEED HOSE *6 INTAKE MANIFOLD GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

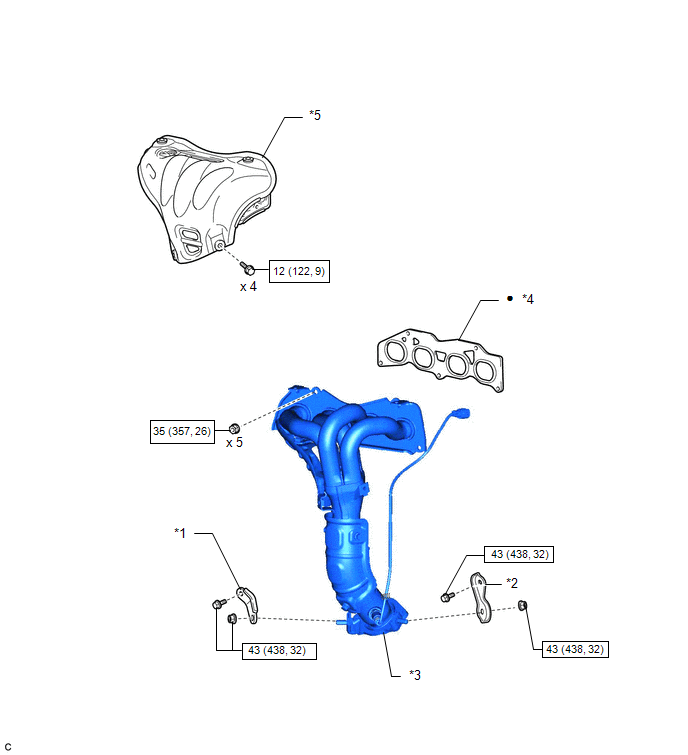

Fig 1: Engine Unit Replacement Components With Torque Specifications (4 Of 10)
GTY434749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 MANIFOLD STAY *2 NO. 2 MANIFOLD STAY
*3 EXHAUST MANIFOLD *4 EXHAUST MANIFOLD TO HEAD GASKET
*5 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

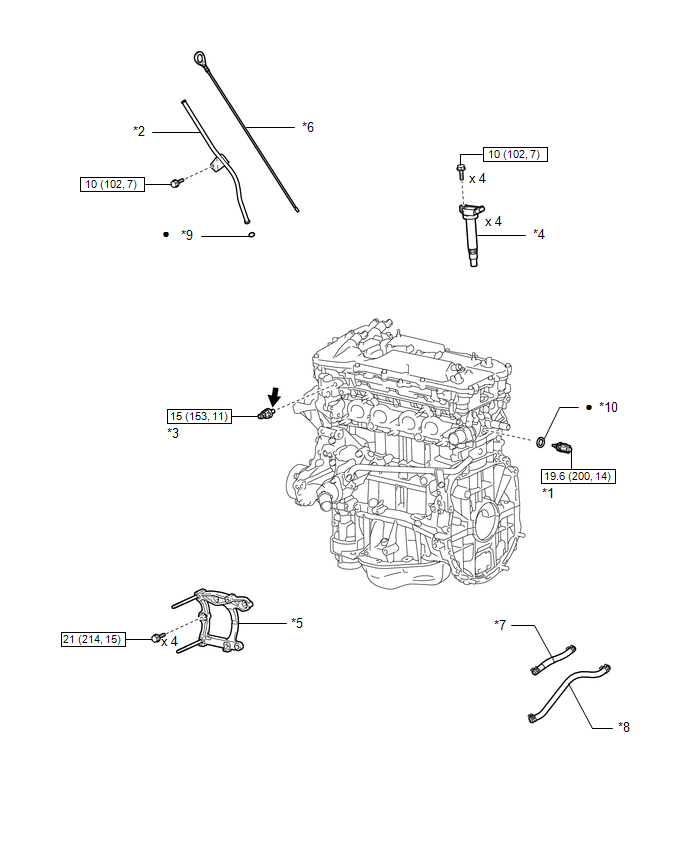

Fig 1: Engine Unit Replacement Components With Torque Specifications (5 Of 10)
GTY424675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE COOLANT TEMPERATURE SENSOR *2 ENGINE OIL LEVEL DIPSTICK GUIDE
*3 ENGINE OIL PRESSURE SWITCH ASSEMBLY *4 IGNITION COIL ASSEMBLY
*5 NO. 1 COMPRESSOR MOUNTING BRACKET *6 ENGINE OIL LEVEL DIPSTICK
*7 NO. 1 WATER BY-PASS HOSE *8 NO. 2 WATER BY-PASS HOSE
*9 O-RING *10 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1344 * Precoated part

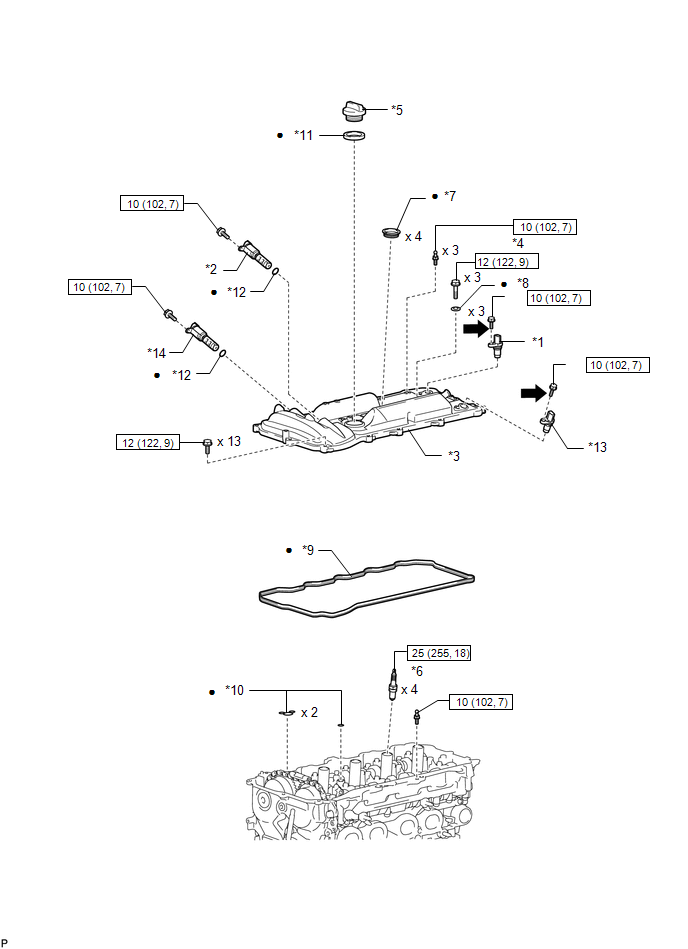

Fig 1: Engine Unit Replacement Components With Torque Specifications (6 Of 10)
GTY428488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT POSITION SENSOR (for Intake Side) *2 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side)
*3 CYLINDER HEAD COVER SUB-ASSEMBLY *4 ENGINE COVER JOINT
*5 OIL FILLER CAP SUB-ASSEMBLY *6 SPARK PLUG
*7 SPARK PLUG TUBE GASKET *8 SEAL WASHER
*9 CYLINDER HEAD COVER GASKET *10 CAMSHAFT BEARING CAP OIL HOLE GASKET
*11 GASKET *12 O-RING
*13 CAMSHAFT POSITION SENSOR (for Exhaust Side) *14 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side)
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1344 * Precoated part

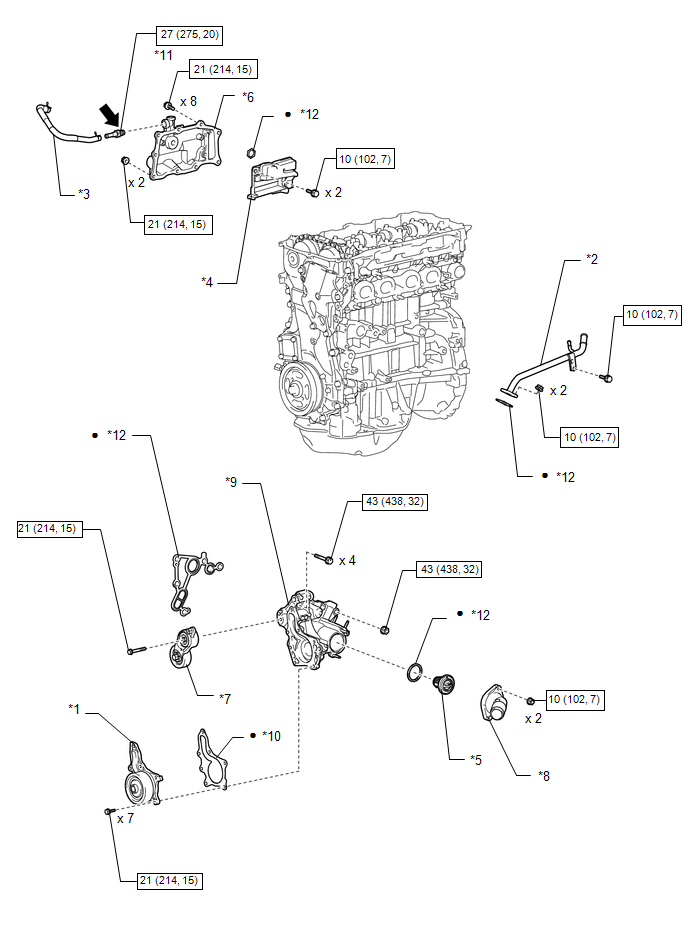

Fig 1: Engine Unit Replacement Components With Torque Specifications (7 Of 10)
GTY439275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 ENGINE WATER PUMP ASSEMBLY *2 NO. 1 WATER BY-PASS PIPE
*3 NO. 2 VENTILATION HOSE *4 SEPARATOR CASE
*5 THERMOSTAT *6 VENTILATION CASE SUB-ASSEMBLY
*7 V-RIBBED BELT TENSIONER ASSEMBLY *8 WATER INLET
*9 WATER INLET HOUSING *10 WATER PUMP GASKET
*11 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *12 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Adhesive 1344 - -

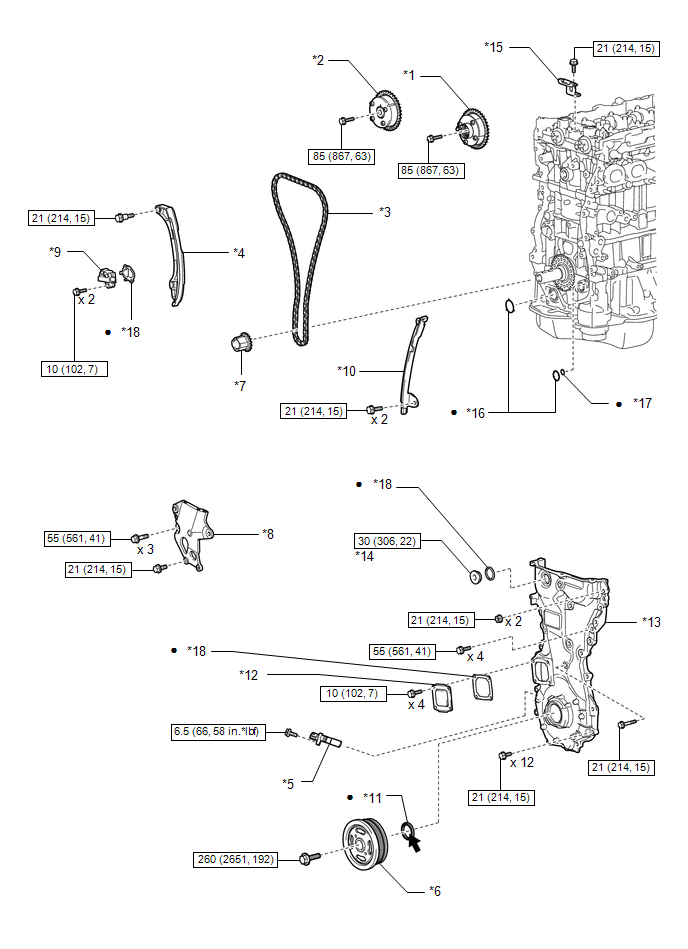

Fig 1: Engine Unit Replacement Components With Torque Specifications (8 Of 10)
GTY435684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *2 CAMSHAFT TIMING GEAR ASSEMBLY
*3 CHAIN SUB-ASSEMBLY *4 CHAIN TENSIONER SLIPPER
*5 CRANKSHAFT POSITION SENSOR *6 CRANKSHAFT PULLEY
*7 CRANKSHAFT TIMING SPROCKET *8 ENGINE MOUNTING BRACKET RH
*9 NO. 1 CHAIN TENSIONER ASSEMBLY *10 NO. 1 CHAIN VIBRATION DAMPER
*11 TIMING CHAIN COVER OIL SEAL *12 TIMING CHAIN COVER PLATE
*13 TIMING CHAIN COVER SUB-ASSEMBLY *14 TIMING CHAIN COVER TIGHT PLUG
*15 TIMING CHAIN GUIDE *16 OIL PUMP GASKET
*17 OIL HOLE COVER GASKET *18 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease * Precoated part

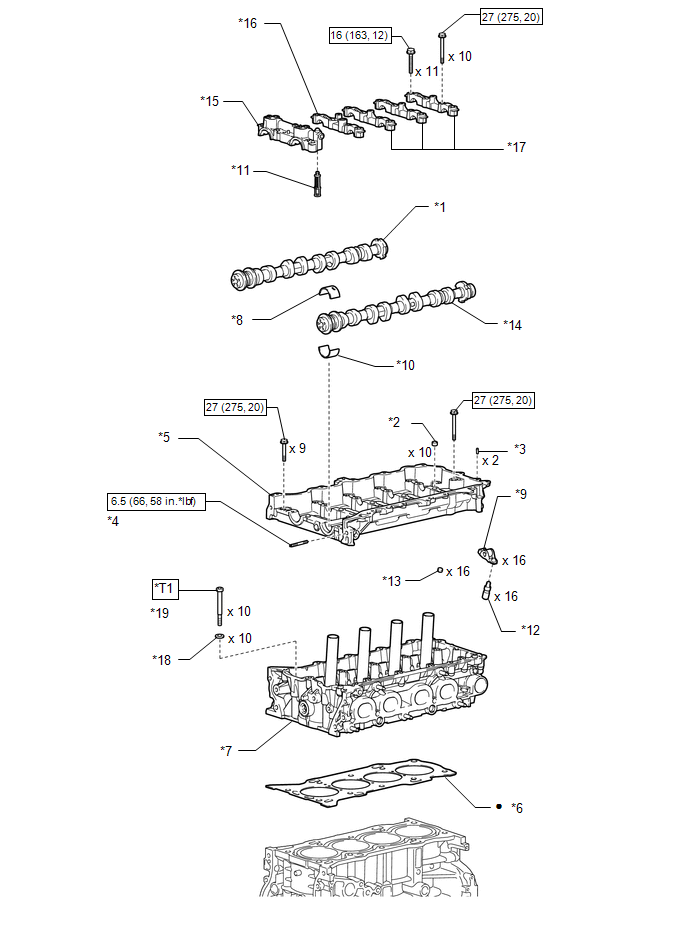

Fig 1: Engine Unit Replacement Components With Torque Specifications (9 Of 10)
GTY598013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CAMSHAFT *2 CAMSHAFT BEARING CAP SETTING RING PIN
*3 CAMSHAFT HOUSING STRAIGHT PIN *4 CAMSHAFT HOUSING STUD BOLT
*5 CAMSHAFT HOUSING SUB-ASSEMBLY *6 CYLINDER HEAD GASKET
*7 CYLINDER HEAD SUB-ASSEMBLY *8 NO. 1 CAMSHAFT BEARING
*9 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY *10 NO. 2 CAMSHAFT BEARING
*11 OIL CONTROL VALVE FILTER *12 VALVE LASH ADJUSTER ASSEMBLY
*13 VALVE STEM CAP *14 NO. 2 CAMSHAFT
*15 NO. 1 CAMSHAFT BEARING CAP *16 NO. 2 CAMSHAFT BEARING CAP
*17 NO. 3 CAMSHAFT BEARING CAP *18 PLATE WASHER
*19 CYLINDER HEAD BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
*T1 1st: 36 (367, 27)
2nd: 36 (367, 27)
3rd: Turn 90°
4th: Turn 90°		 - -

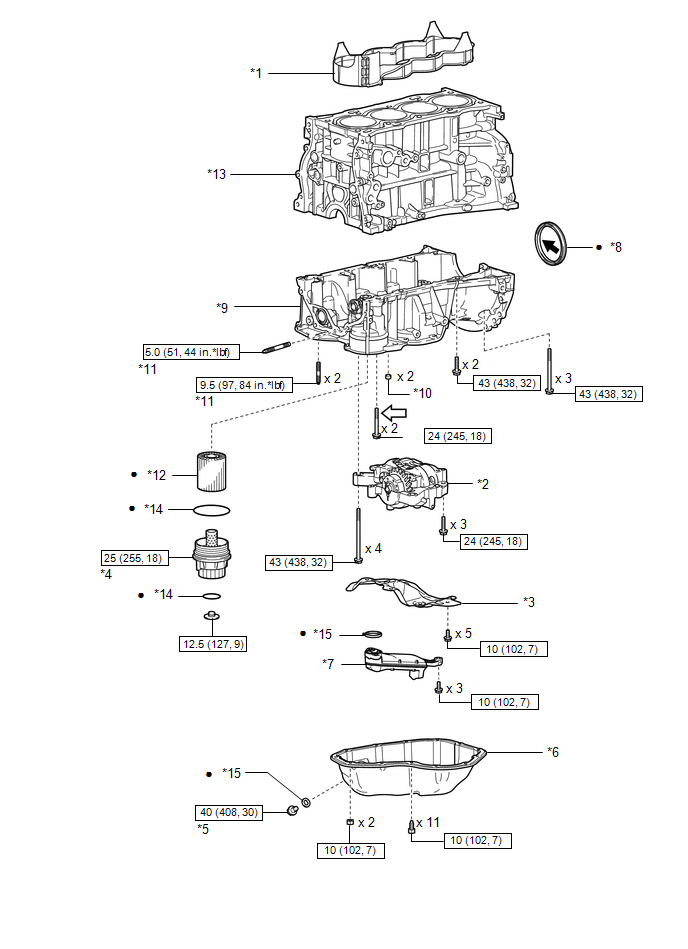

Fig 1: Engine Unit Replacement Components With Torque Specifications (10 Of 10)
GTY430483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CYLINDER BLOCK WATER JACKET SPACER *2 ENGINE BALANCER ASSEMBLY
*3 NO. 1 OIL PAN BAFFLE PLATE *4 OIL FILTER CAP ASSEMBLY
*5 OIL PAN DRAIN PLUG *6 OIL PAN SUB-ASSEMBLY
*7 OIL STRAINER SUB-ASSEMBLY *8 REAR ENGINE OIL SEAL
*9 STIFFENING CRANKCASE ASSEMBLY *10 STIFFENING CRANKCASE RING PIN
*11 STIFFENING CRANKCASE STUD BOLT *12 OIL FILTER ELEMENT
*13 CYLINDER BLOCK SUB-ASSEMBLY *14 O-RING
*15 GASKET - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
MP grease Adhesive 1344
* Precoated part - -
