Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

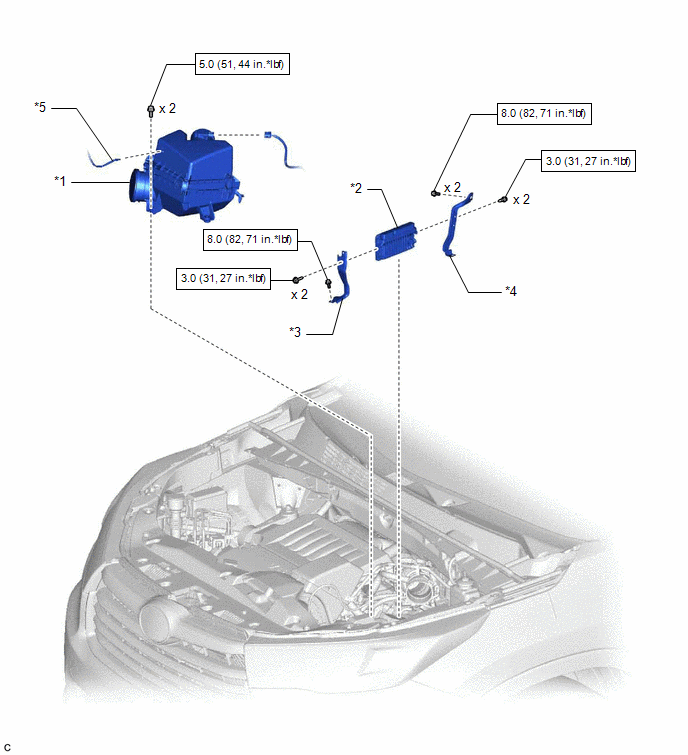

Fig 1: ECM Replacement Components With Torque Specifications
GTY424609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 AIR CLEANER ASSEMBLY *2 ECM
*3 ECM BRACKET *4 NO. 2 ECM BRACKET
*5 AIR HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
