Reassembly [12/2013 - 11/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL OIL PUMP ROTOR SET
- Coat the drive rotor and driven rotor with engine oil and place them into the timing chain cover sub-assembly with the rotor marks facing up. Check that the rotors rotate smoothly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- INSTALL OIL PUMP COVER

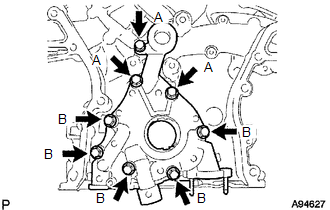

- Install the oil pump cover with the 8 bolts.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)
BOLT LENGTH
| Item |
Length |
| Bolt (A) |
22 mm (0.866 in.) |
| Bolt (B) |
40 mm (1.57 in.) |
- INSTALL OIL PUMP RELIEF VALVE
- Coat the oil pump relief valve with engine oil.
- Insert the oil pump relief valve and oil pump relief valve spring into the oil pump cover hole.
- Using a 27 mm socket wrench, install the oil pump relief valve plug.
Torque: 49.1 N*m (501 kgf*cm, 36 ft.*lbf)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
