Disassembly [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE OIL PUMP RELIEF VALVE

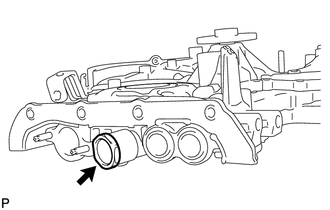

    1. Using a 27 mm socket wrench, remove the oil pump relief valve plug.
      GTY298868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the oil pump relief valve spring and oil pump relief valve.
  2. REMOVE OIL PUMP COVER

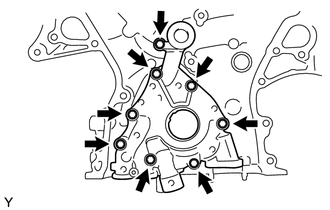

    1. Remove the 8 bolts and oil pump cover.
      GTY146414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE OIL PUMP ROTOR SET

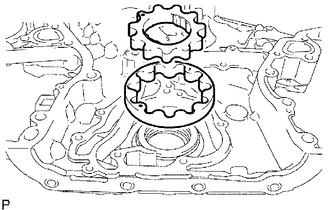

    1. Remove the drive rotor and driven rotor from the timing chain cover sub-assembly.
      GTY408760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
