Section 32 (Engine Cooling Fan System (2GR-FE) (Inspection & Circuit Tests) (Except Hybrid))
>>
Cooling Fan System
>>
System Diagram [12/2013 - 11/2016]
>>
System Diagram [12/2013 - 11/2016]
System Diagram [12/2013 - 11/2016]
WARNING:
This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

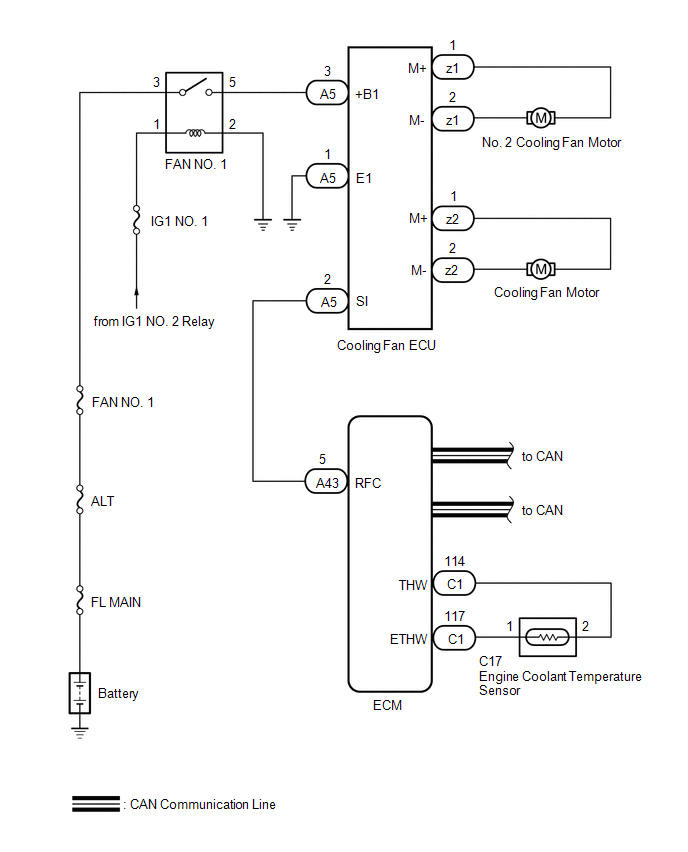

Fig 1: Cooling Fan System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
