Reassembly [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SHIFT SOLENOID VALVE SL4
    1. Coat the shift solenoid valve SL4 and bolt with ATF.
      GTY443195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL4
    2. Install the shift solenoid valve SL4 and solenoid lock plate to the transmission valve body assembly with the bolt.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  2. INSTALL SHIFT SOLENOID VALVE SL3
    1. Coat the shift solenoid valve SL3 and bolt with ATF.

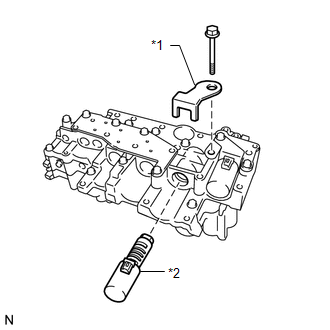

      GTY451335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL3
    2. Install the shift solenoid valve SL3 and solenoid lock plate to the transmission valve body assembly with the bolt.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  3. INSTALL SHIFT SOLENOID VALVE SL1
    1. Coat the shift solenoid valve SL1 with ATF.
      GTY442446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shift Solenoid Valve SL1
    2. Install the shift solenoid valve SL1 to the transmission valve body assembly.
  4. INSTALL SHIFT SOLENOID VALVE SL2
    1. Coat the shift solenoid valve SL2 and bolt with ATF.
      GTY444795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL2
    2. Install the shift solenoid valve SL2 and solenoid lock plate to the transmission valve body assembly with the bolt.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

  5. INSTALL SHIFT SOLENOID VALVE SLU
    1. Coat the shift solenoid valve SLU with ATF.
      GTY444280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shift Solenoid Valve SLU
    2. Install the shift solenoid valve SLU to the transmission valve body assembly.
  6. INSTALL SHIFT SOLENOID VALVE SLT
    1. Coat the shift solenoid valve SLT with ATF.
      GTY447522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SLT
    2. Install the shift solenoid valve SLT and solenoid lock plate to the transmission valve body assembly.
  7. INSTALL SHIFT SOLENOID VALVE SL
    1. Coat the shift solenoid valve SL with ATF.

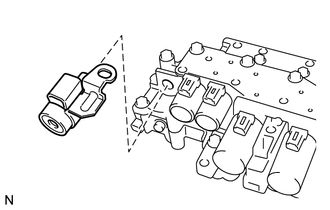

      GTY451591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the shift solenoid valve SL to the transmission valve body assembly.
  8. INSTALL ATF TEMPERATURE SENSOR ASSEMBLY
    1. Coat a new O-ring with ATF and install it to the ATF temperature sensor assembly.
      GTY439984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    2. Coat the 4 bolts with ATF.

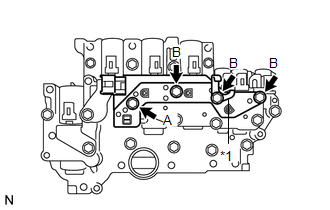

      GTY440546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Clamp
    3. Install the ATF temperature sensor assembly and clamp to the transmission valve body assembly with the 4 bolts.

      Torque: 10.8 N*m (110 kgf*cm, 8 ft.*lbf)

      Bolt Length

      Bolt (A)

      25 mm (0.984 in.)

      Bolt (B)

      85 mm (3.35 in.)

  9. INSTALL TRANSMISSION WIRE

    See step  1
