Inspection [12/2013 - 11/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT ATF TEMPERATURE SENSOR ASSEMBLY

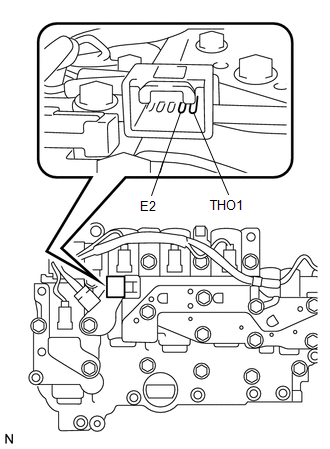

- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition E2 - THO1 Always 79 Ω to 156 kΩ E2 - Body ground and other terminals Always 10 kΩ or higher THO1 - Body ground and other terminals Always 10 kΩ or higher If the resistance is out of the specified range with the ATF temperature shown in the preceding table, replace the ATF temperature sensor assembly. Otherwise, the driveability of the vehicle may decrease.
ATF Temperature Specified Condition 10°C (50°F) 5 to 8 kΩ 25°C (77°F) 2.5 to 4.5 kΩ 110°C (230°F) 0.22 to 0.28 kΩ
- Measure the resistance according to the value(s) in the table below.
