Installation [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE WATER PUMP ASSEMBLY
    1. Install a new water pump gasket and engine water pump assembly together with the water pump pulley with the 16 bolts.

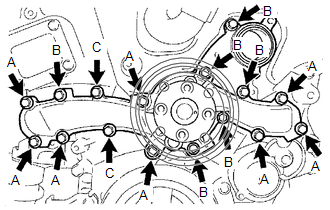

      GTY439391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      Bolt (B) and (C)

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      NOTE:
      • Make sure that there is no oil on the threads of the bolts (A).
      • Be sure to replace the 2 bolts (C) with new ones or reuse them after applying adhesive.
      • Do not start the engine within 1 hour of installation.

      Adhesive

      Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent

  2. INSTALL WATER PUMP PULLEY
    1. Temporarily install the water pump pulley with the 4 bolts.
    2. Using SST, hold the water pump pulley.
      • SST: 09960-10010
        1. 09962-01000
        2. 09963-00700

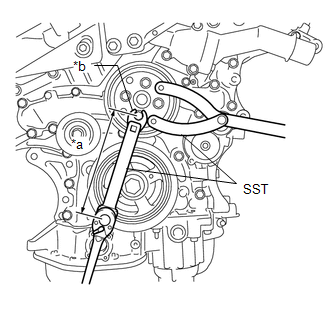

      GTY425768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Length of SST and Union Nut Wrench 170 mm (6.69 in.)
      *b 12 mm Union Nut Wrench
    3. Using SST and 12 mm union nut wrench, tighten the 4 bolts.
      • SST: 09961-00950

      without SST [Torque (N*m (kgf*cm, ft.*lbf))]

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

      Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • The "with SST" torque value is effective when using SST and union nut wrench with a fulcrum length of 170 mm (6.69in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 180 mm (7.09 in.).
      • If using a torque wrench with a different length, or connecting the torque wrench, SST and union nut wrench at an angle, refer to the alternate torque values.

        Refer to PRECAUTION [12/2013 - 11/2016]

  3. INSTALL WATER INLET HOUSING
    1. Install 2 new O-rings.
    2. Install the water inlet housing with the 2 bolts and nut.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:

      Be careful not to allow the O-ring to get caught between the parts.

    3. Connect the water by-pass hose and slide the clip to secure it.
  4. INSTALL V-RIBBED BELT TENSIONER PULLEY
    1. Install the V-ribbed belt tensioner pulley and dust shield with the bolt.

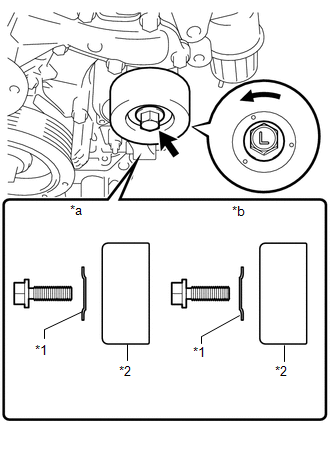

      GTY441612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Dust Shield
      *2 V-ribbed Belt Tensioner Pulley
      *a Correct
      *b Incorrect
      NOTE:
      • Be careful when tightening the bolt because its thread is left-handed.
      • Install the dust shield in the direction shown in the illustration. Failure to do so may cause looseness.
      • Make sure to use the removed bolt. (Do not use another bolt even if it is the same size.)

      Torque: 48 N*m (489 kgf*cm, 35 ft.*lbf)

    2. Install a 5 mm bi-hexagon wrench.
  5. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH
    1. Temporarily install the front No. 1 engine mounting bracket LH with the 6 bolts.
    2. Fully tighten the 5 bolts.
      GTY454739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

    3. Using SST, fully tighten the bolt.
      • SST: 09961-00950

      without SST [Torque (N*m (kgf*cm, ft.*lbf))]

      Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

      with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

      Torque: 34 N*m (347 kgf*cm, 25 ft.*lbf)

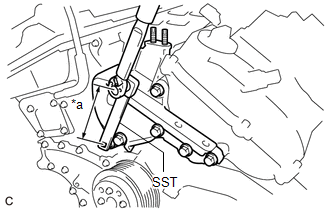

      GTY450817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Length of SST 150 mm (5.91 in.)

      HINT:

      • This torque value is effective when SST is parallel to the torque wrench.
      • The "with SST" torque value is effective when using SST with a fulcrum length of 150 mm (5.91 in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 260 mm (10.2 in.).
      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Refer to PRECAUTION [12/2013 - 11/2016]

    4. Lower the engine, and remove the jack.
  7. INSTALL ENGINE MOUNTING INSULATOR RH
    1. Install the engine mounting insulator RH with the 3 nuts.

      Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

    2. Install the 2 hole plugs.
  8. INSTALL FRONT ENGINE MOUNTING INSULATOR ASSEMBLY
    1. Install the front engine mounting insulator assembly with the 3 nuts.

      Torque: 58 N*m (591 kgf*cm, 43 ft.*lbf)

    2. Install the hole plug.
  9. INSTALL REAR ENGINE MOUNTING INSULATOR ASSEMBLY
    1. Install the rear engine mounting insulator assembly with the 2 nuts.

      Torque: 58 N*m (591 kgf*cm, 43 ft.*lbf)

    2. Install the 2 hole plugs.
  10. INSTALL NO. 2 TIMING GEAR COVER

    Refer to PROCEDURE - Step 8

  11. INSTALL ENGINE MOVING CONTROL ROD BRACKET

    Refer to PROCEDURE - Step 49

  12. INSTALL NO. 2 ENGINE MOUNTING STAY RH (for Intake Manifold Side)

    Refer to PROCEDURE - Step 6

  13. INSTALL NO. 2 ENGINE MOUNTING STAY RH (for Engine Mounting Stay Side)

    Refer to PROCEDURE - Step 50

  14. CONNECT NO. 2 RADIATOR HOSE

    Refer to PROCEDURE - Step 44

  15. INSTALL V-RIBBED BELT

    Refer to INSTALLATION [12/2013 - 11/2016]

  16. ADD ENGINE COOLANT

    See step  3

  17. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  18. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 84
