Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 25
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 8
DRAIN ENGINE COOLANT
See step 2
REMOVE COOLER CONDENSER ASSEMBLY
Refer to REMOVAL [12/2013 - 11/2016]
DISCONNECT NO. 1 RADIATOR HOSE
See step 10

DISCONNECT NO. 2 RADIATOR HOSE

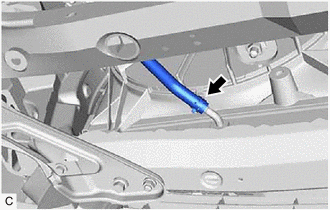

Slide the clip and disconnect the No. 2 radiator hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT RADIATOR RESERVE TANK HOSE
See step 11

DISCONNECT INLET NO. 1 OIL COOLER HOSE

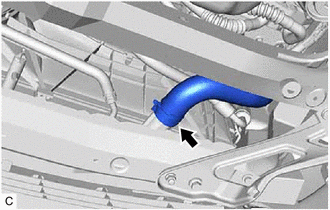

Disengage the clamp to disconnect the inlet No. 1 oil cooler hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

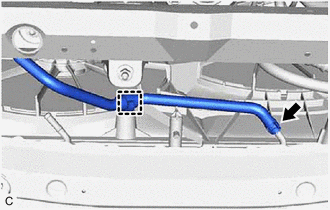

Slide the clip and disconnect the inlet No. 1 oil cooler hose.

DISCONNECT OUTLET NO. 1 OIL COOLER HOSE

Slide the clip and disconnect the outlet No. 1 oil cooler hose.

REMOVE RADIATOR ASSEMBLY

Remove the radiator assembly with the fan shroud assembly from the 2 lower radiator supports.
Remove the 2 lower radiator supports from the vehicle body.
Remove the 2 radiator supports from the radiator assembly.

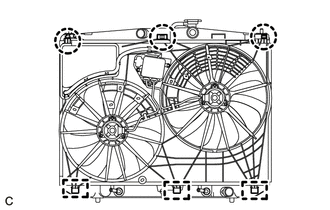

Disengage the 3 claws.

Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
NOTE:
Do not damage the radiator assembly when removing the fan shroud assembly.
