Components [12/2013 - 11/2016]: Illustration
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

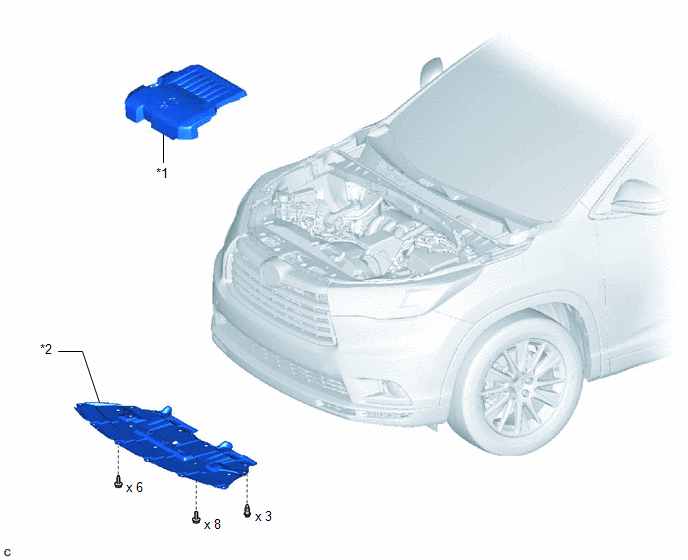

| *1 |
V-BANK COVER SUB-ASSEMBLY |
*2 |
NO. 1 ENGINE UNDER COVER |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

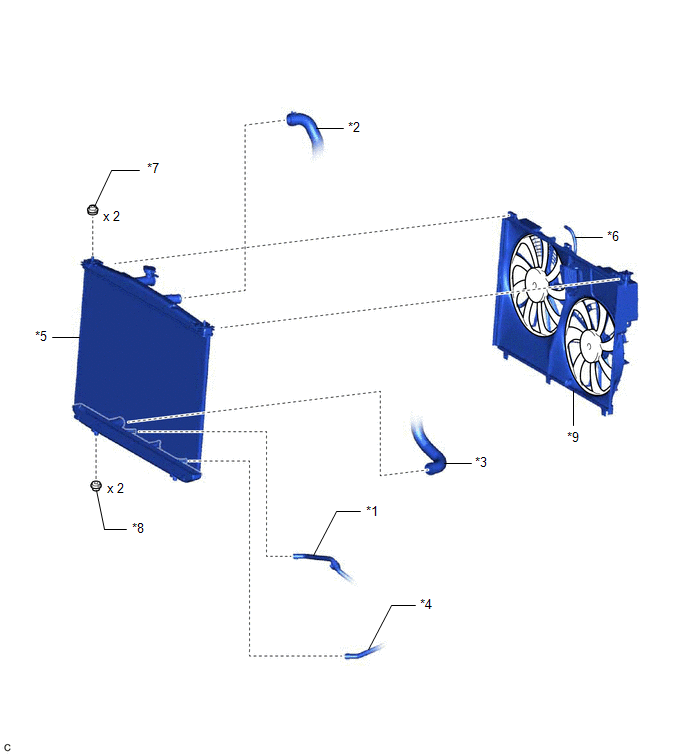

| *1 |
INLET NO. 1 OIL COOLER HOSE |
*2 |
NO. 1 RADIATOR HOSE |
| *3 |
NO. 2 RADIATOR HOSE |
*4 |
OUTLET NO. 1 OIL COOLER HOSE |
| *5 |
RADIATOR ASSEMBLY |
*6 |
RADIATOR RESERVE TANK HOSE |
| *7 |
RADIATOR SUPPORT |
*8 |
LOWER RADIATOR SUPPORT |
| *9 |
FAN SHROUD ASSEMBLY |
- |
- |
