Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

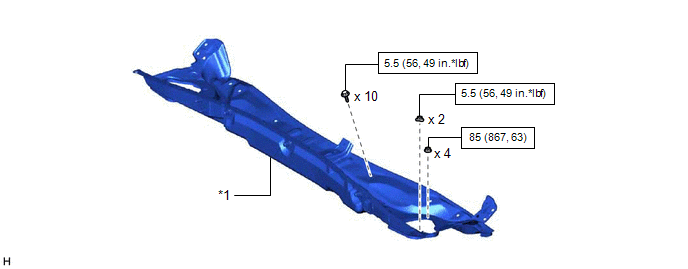

Fig 1: Intake Manifold Replacement Components With Torque Specifications (1 Of 3)
GTY429531Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 OUTER COWL TOP PANEL SUB-ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

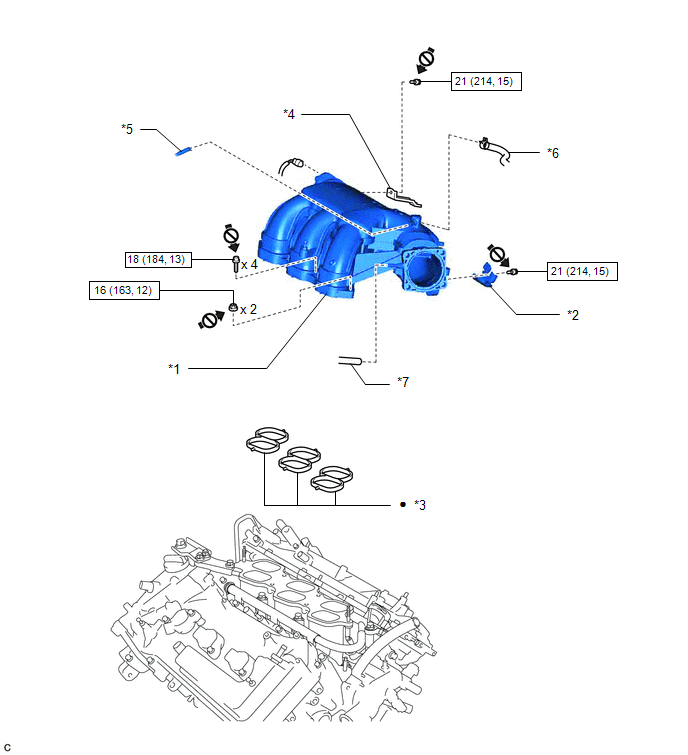

Fig 1: Intake Manifold Replacement Components With Torque Specifications (2 Of 3)
GTY453920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE AIR SURGE TANK ASSEMBLY *2 THROTTLE BODY BRACKET
*3 INTAKE AIR SURGE TANK GASKET *4 NO. 1 SURGE TANK STAY
*5 VENTILATION HOSE *6 UNION TO CHECK VALVE HOSE
*7 FUEL VAPOR FEED HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Do not apply lubricants (to the threaded parts) - -


Fig 1: Intake Manifold Replacement Components With Torque Specifications (3 Of 3)
GTY442755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FUEL DELIVERY PIPE SUB-ASSEMBLY *2 NO. 2 ENGINE MOUNTING STAY RH
*3 INTAKE MANIFOLD *4 FUEL HOSE PROTECTOR
*5 FUEL TUBE SUB-ASSEMBLY *6 NO. 2 FUEL PIPE CLAMP
*7 INJECTOR VIBRATION INSULATOR *8 INTAKE MANIFOLD TO HEAD GASKET
*9 STUD BOLT - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
