Disassembly [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION WIRE

    See step  2

  2. REMOVE ATF TEMPERATURE SENSOR ASSEMBLY

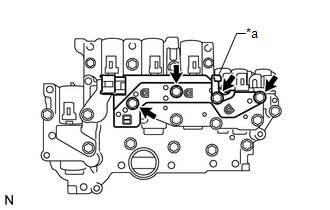

    1. Remove the 4 bolts, ATF temperature sensor assembly and clamp from the transmission valve body assembly.
      GTY440547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Clamp
    2. Remove the O-ring from the ATF temperature sensor assembly.
      GTY453917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
  3. REMOVE SHIFT SOLENOID VALVE SL
    1. Remove the shift solenoid valve SL from the transmission valve body assembly.
      GTY451591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SHIFT SOLENOID VALVE SLT
    1. Remove the solenoid lock plate and shift solenoid valve SLT from the transmission valve body assembly.
      GTY447522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SLT
  5. REMOVE SHIFT SOLENOID VALVE SLU
    1. Remove the shift solenoid valve SLU from the transmission valve body assembly.
      GTY444280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shift Solenoid Valve SLU
  6. REMOVE SHIFT SOLENOID VALVE SL2
    1. Remove the bolt, solenoid lock plate and shift solenoid valve SL2 from the transmission valve body assembly.
      GTY444795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL2
  7. REMOVE SHIFT SOLENOID VALVE SL1
    1. Remove the shift solenoid valve SL1 from the transmission valve body assembly.
      GTY442446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Shift Solenoid Valve SL1
  8. REMOVE SHIFT SOLENOID VALVE SL3

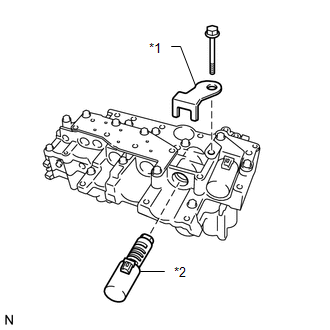

    1. Remove the bolt, solenoid lock plate and shift solenoid valve SL3 from the transmission valve body assembly.
      GTY428098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL3
  9. REMOVE SHIFT SOLENOID VALVE SL4
    1. Remove the bolt, solenoid lock plate and shift solenoid valve SL4 from the transmission valve body assembly.
      GTY443189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Solenoid Lock Plate
      *2 Shift Solenoid Valve SL4
