DTC P2810: Pressure Control Solenoid "G" Electrical (Shift Solenoid Valve SL4) [12/2013 - 11/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT TRANSMISSION WIRE (SL4)
- Remove the TCM from the transaxle.

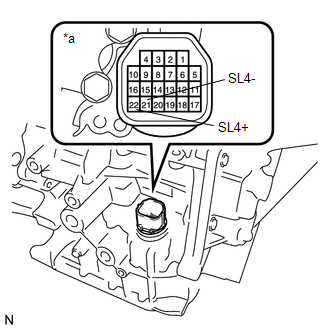

*a Component without harness connected
(Transmission Wire) - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 22 (SL4+) - 21 (SL4-) 20°C (68°F) 5.0 to 5.6 Ω 22 (SL4+) - Body ground and other terminals Always 10 kΩ or higher 21 (SL4-) - Body ground and other terminals Always 10 kΩ or higher Result
Proceed to OK NG
Result: 1
OK
REPLACE TCM. Refer to COMPONENTS [12/2013 - 11/2016]
Result: 2
NG
See step 2
- Remove the TCM from the transaxle.
- INSPECT SHIFT SOLENOID VALVE SL4
- Remove shift solenoid valve SL4.
*1 Shift Solenoid Valve SL4 - Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition 1 - 2 20°C (68°F) 5.0 to 5.6 Ω - Connect a battery positive (+) lead with a 21 W bulb to terminal 2 and a negative (-) lead to terminal 1 of the solenoid valve connector. Then check that the valve moves and makes an operating sound.
OK
Valve moves and makes an operating sound.
Result
Proceed to OK NG
Result: 1
OK
REPLACE TRANSMISSION WIRE. Refer to COMPONENTS [12/2013 - 11/2016]
Result: 2
NG
REPLACE SHIFT SOLENOID VALVE SL4. Refer to COMPONENTS [12/2013 - 11/2016]
- Remove shift solenoid valve SL4.
