DTC P0715: Input / Turbine Speed Sensor Circuit Malfunction; DTC P0717: Input Speed Sensor Circuit No Signal [08/2014 - 11/2016]: Description
WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
This sensor detects the rotation speed of the turbine, which indicates the input shaft revolution (speed) of the transaxle. By comparing the input turbine speed signal (NT) with the counter gear speed sensor signal (NC), the TCM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions, thus, providing smooth gear shifts.

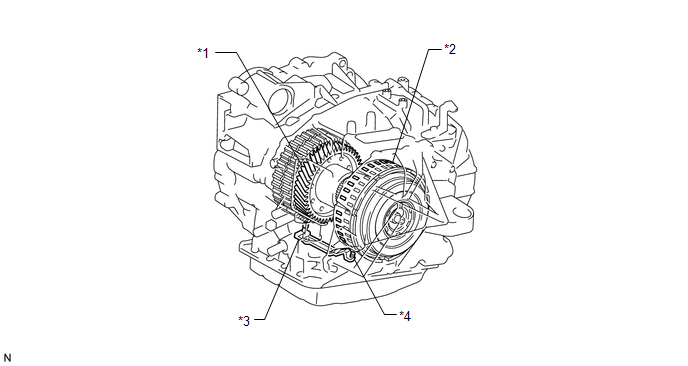

| *1 | Counter Gear | *2 | Clutch Drum |
| *3 | Output Speed Sensor NC | *4 | Input Speed Sensor NT |
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Memory |
|---|---|---|---|---|---|
| P0715 | Input / Turbine Speed Sensor Circuit Malfunction | When the speed sensor input voltage is either more than 1.9 V or less than 0.1 V for 4.5 seconds or more. (1-trip detection logic) |
|
Comes on | DTC stored |
| P0717 | Input Speed Sensor Circuit No Signal | TCM detects conditions (a), (b) and (c) continuously for 5 sec. or more: (1-trip detection logic) (a) Vehicle speed: 50 km/h (31 mph) or more (b) Park/neutral position switch (R) is OFF (c) Speed sensor (NT): less than 300 rpm |
|
Comes on | DTC stored |
