Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the purge valve (purge VSV) connector.
      GTY433739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Vapor Feed Hose Assembly
      *2 No. 1 Fuel Vapor Feed Hose
    2. Disengage the wire harness clamp from the purge valve (purge VSV).
    3. Slide the clip and disconnect the fuel vapor feed hose assembly from the purge valve (purge VSV).
    4. Disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).

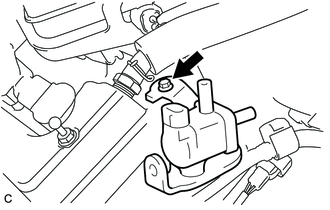

    5. Remove the bolt and purge valve (purge VSV) from the cylinder head cover LH sub-assembly.
