Removal [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  2. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

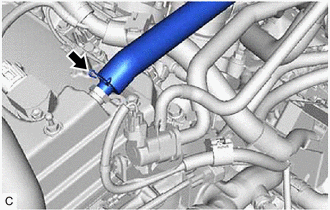

    1. Slide the clip and disconnect the ventilation hose assembly from the PCV valve (ventilation valve sub-assembly).
      GTY454094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

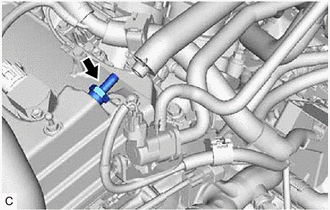

    2. Using a 19 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover LH sub-assembly.
      GTY440813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
