Components [12/2013 - 11/2016]: Illustration

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

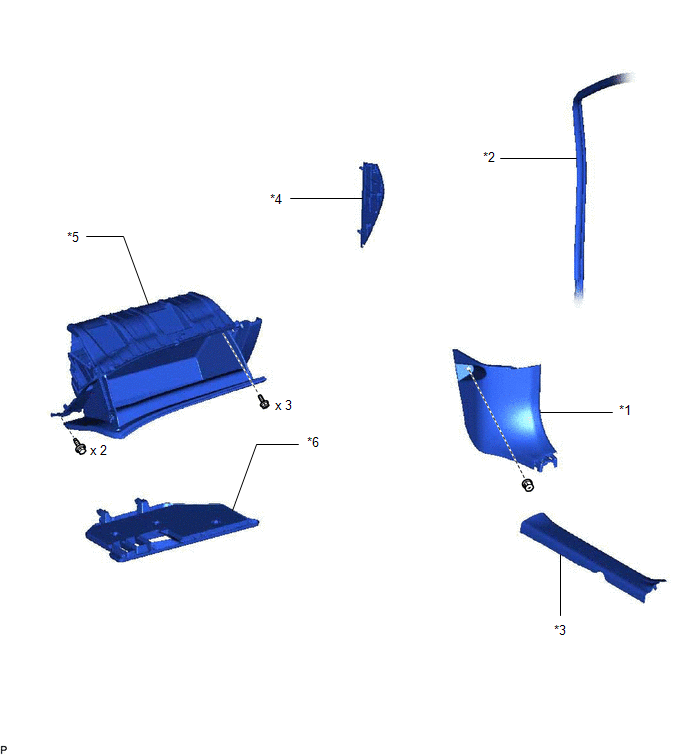

Fig 1: Engine Switch Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER INSTRUMENT CLUSTER FINISH PANEL WITH AIR CONDITIONING CONTROL ASSEMBLY	*2	COWL SIDE TRIM SUB-ASSEMBLY LH
*3	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*4	FRONT DOOR SCUFF PLATE LH
*5	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*6	INSTRUMENT PANEL FINISH PANEL END LH
*7	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	*8	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

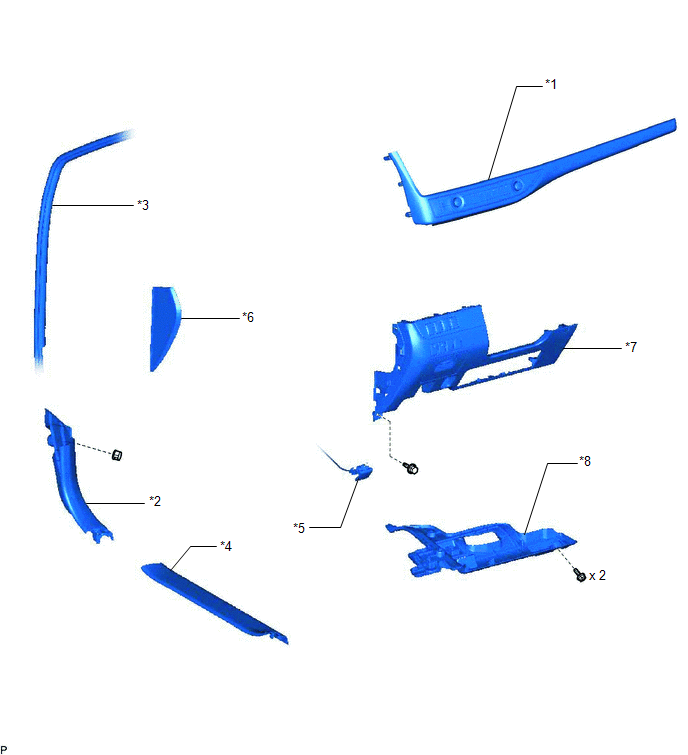

Fig 1: Engine Switch Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	COWL SIDE TRIM SUB-ASSEMBLY RH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3	FRONT DOOR SCUFF PLATE RH	*4	INSTRUMENT PANEL FINISH PANEL END RH
*5	LOWER INSTRUMENT PANEL SUB-ASSEMBLY	*6	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

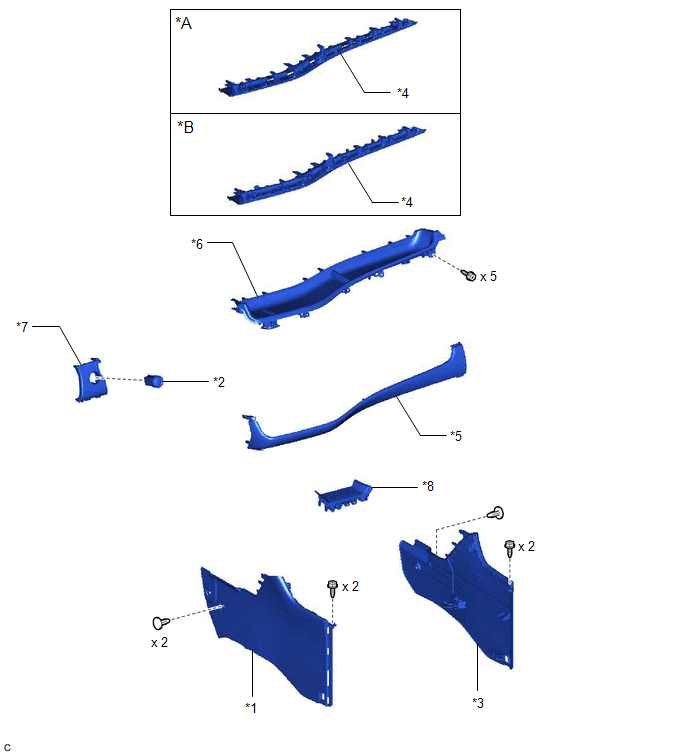

Fig 1: Engine Switch Replacement Components (3 Of 3)

*A	w/ Illumination	*B	w/o Illumination
*1	CONSOLE BOX INSERT	*2	ENGINE SWITCH
*3	FRONT NO. 2 CONSOLE BOX INSERT	*4	INSTRUMENT CLUSTER FINISH PANEL END
*5	INSTRUMENT CLUSTER FINISH PANEL ORNAMENT	*6	INSTRUMENT PANEL FINISH PLATE
*7	NO. 1 SWITCH HOLE BASE	*8	NO. 2 SWITCH HOLE BASE
