Vehicle Stability Control System - Diagnostic Codes - (Except Hybrid) (2 Of 2)
>>
Vehicle Stability Control System
>>
DTC C146E: Open in ABS Solenoid Relay Circuit; DTC C146F: Short in ABS Solenoid Relay Circuit [12/2013 - 11/2016]
>>

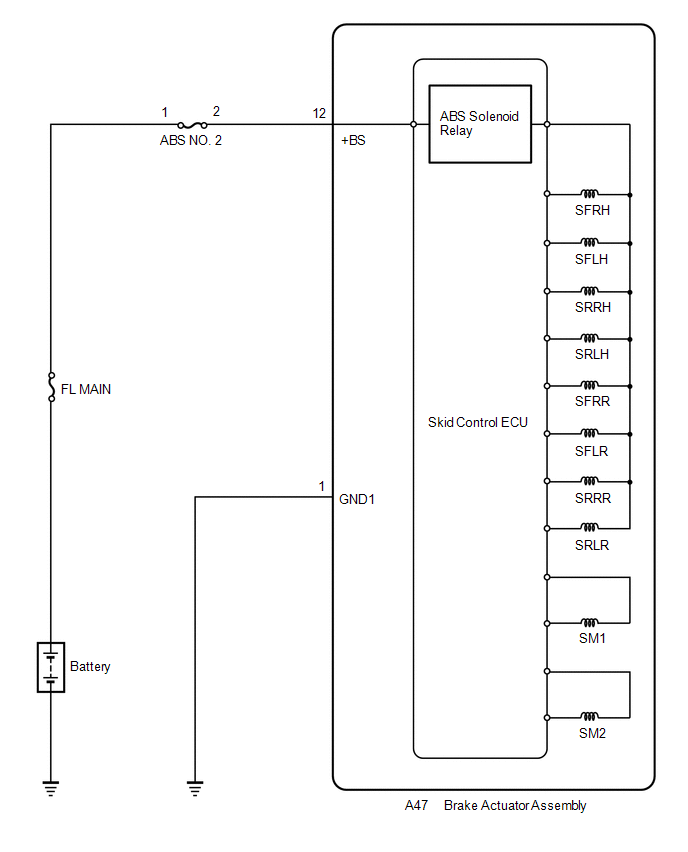

Wiring Diagram
DTC C146E: Open in ABS Solenoid Relay Circuit; DTC C146F: Short in ABS Solenoid Relay Circuit [12/2013 - 11/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
