Removal [12/2013 - ]: Procedure

  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

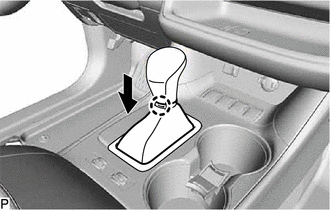

    1. Disengage the claw and disconnect the shift hole cover sub-assembly as shown in the illustration.
      GTY423211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the shift lever knob sub-assembly counterclockwise and remove it.
      GTY423252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT PANEL GARNISH LH

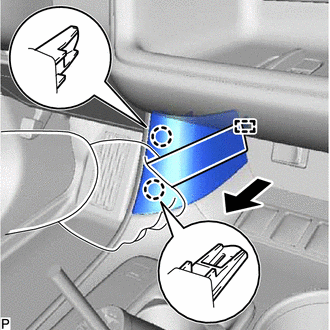

    1. Using a moulding remover, disengage the 2 claws and guide, and remove the front panel garnish LH as shown in the illustration.
      GTY423208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT PANEL GARNISH RH

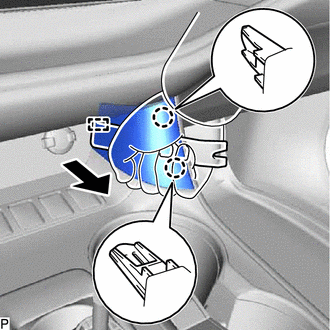

    1. Using a moulding remover, disengage the 2 claws and guide, and remove the front panel garnish RH as shown in the illustration.
      GTY423206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
    1. Disengage the 5 claws, 2 clips and 3 guides, and remove the No. 1 console upper panel garnish as shown in the illustration.
      GTY423263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
    1. Disengage the 5 claws, 2 clips and 3 guides, and remove the No. 2 console upper panel garnish as shown in the illustration.
      GTY423253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
    1. Move the shift lever to N.
    2. Disengage the 5 claws and 2 clips as shown in the illustration.
      GTY423255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the connector and remove the upper console panel sub-assembly.
  7. REMOVE REAR CONSOLE LOWER BOX

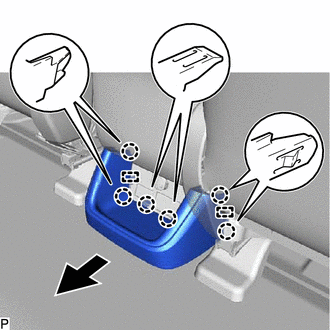

    1. Disengage the 6 claws and 2 guides, and remove the rear console lower box as shown in the illustration.
      GTY423256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE BOX HOLE COVER

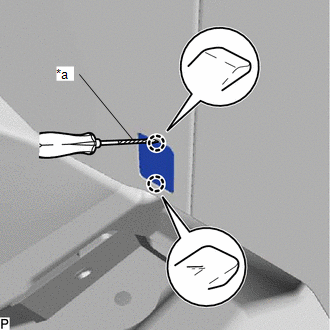

    1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the console box hole cover.

      HINT:

      Use the same procedure for the RH side and LH side.

      GTY434508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
  9. REMOVE CONSOLE BOX ASSEMBLY
    1. Disconnect the 2 connectors.
      GTY450282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

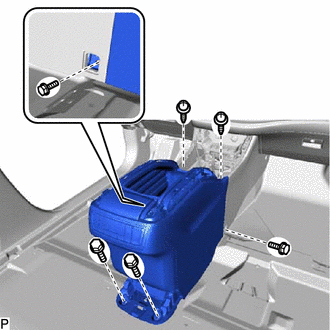

    2. Remove the 4 bolts and 2 screws.
      GTY423270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 8 guides and remove the console box assembly as shown in the illustration.
      GTY423272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
