Components [12/2013 - ]: Illustration

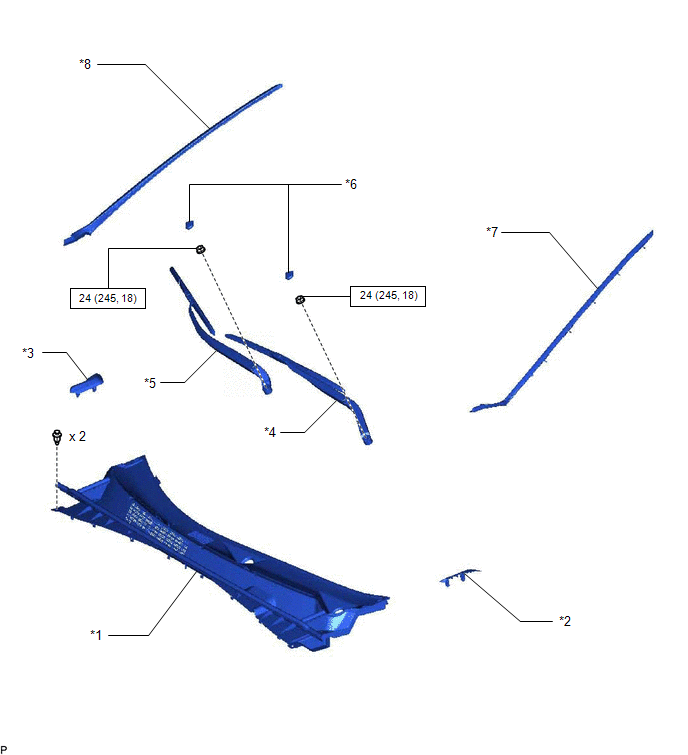

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 2)

GTY446236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT WIPER ARM AND BLADE ASSEMBLY LH
*5	FRONT WIPER ARM AND BLADE ASSEMBLY RH	*6	FRONT WIPER ARM HEAD CAP
*7	WINDSHIELD OUTSIDE MOULDING LH	*8	WINDSHIELD OUTSIDE MOULDING RH
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

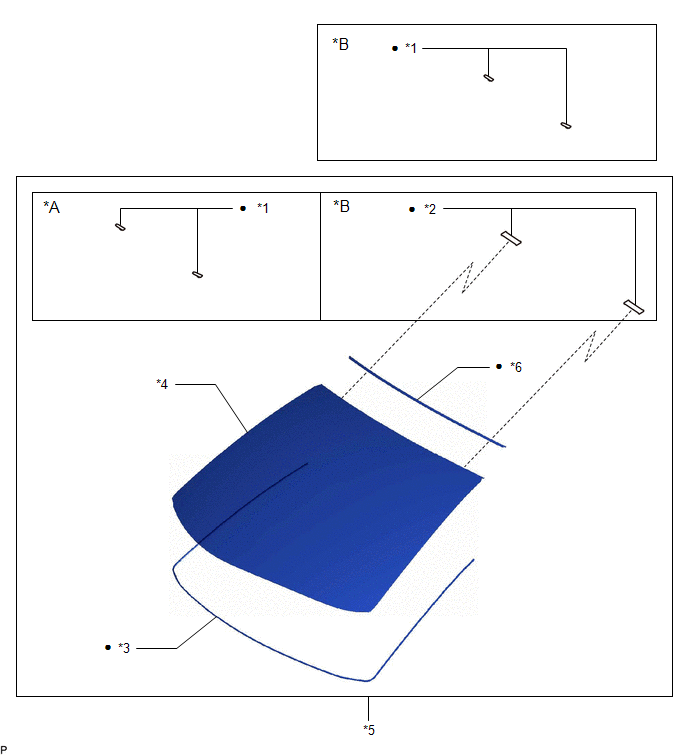

Fig 1: Windshield Glass Replacement Components (2 Of 2)

GTY425690

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 1-piece Type	*B	for 2-piece Type
*1	NO. 1 WINDSHIELD GLASS STOPPER	*2	NO. 2 WINDSHIELD GLASS STOPPER
*3	WINDOW GLASS ADHESIVE DAM	*4	WINDSHIELD GLASS
*5	WINDSHIELD GLASS SUB-ASSEMBLY	*6	WINDSHIELD OUTSIDE MOULDING
•	Non-reusable part	-	-
