Removal [12/2013 - ]: Procedure

  1. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 , or refer to PROCEDURE - Step 4

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

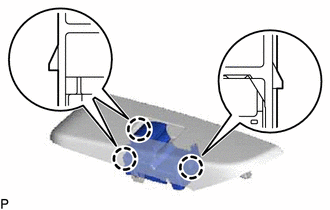

    1. Disengage the 3 claws to remove the rear power window regulator switch assembly.
      GTY427091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
