Components [12/2013 - ]: Illustration

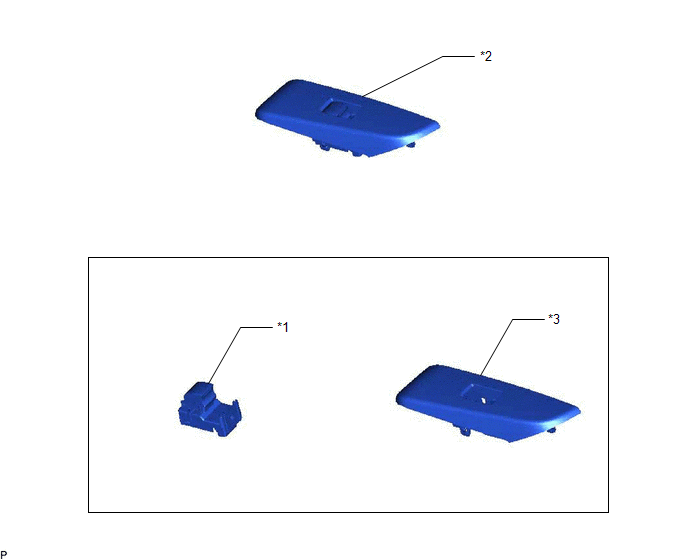

Fig 1: Rear Power Window Switch Replacement Components
GTY450137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY *2 REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
*3 REAR DOOR UPPER ARMREST BASE PANEL - -
