Illustration
Components [12/2013 - ]: Illustration

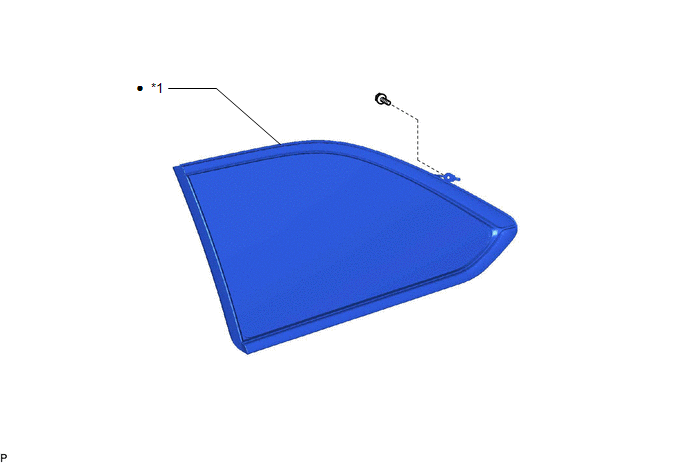

Fig 1: Quarter Window Glass Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
QUARTER WINDOW ASSEMBLY
-
-
•
Non-reusable part
-
-
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
